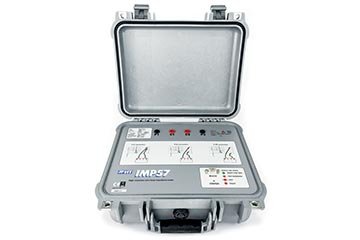

HT IMP57 High resolution impedance measurements adapter

ZLINE ZLOOP Measurement:

0.0 ÷ 199.9mΩ, 0.1mΩ, ±(5.0%rdg+1mΩ)

200 ÷ 1999mΩ, 1mΩ, ±(5.0%rdg+1mΩ)

RLINE RLOOP, XLINE XLOOP Measurement:

0.0 ÷ 199.9mΩ, 0.1mΩ, ±(10%rdg+2mΩ)

200 ÷ 1999mΩ, 1mΩ, ±(10%rdg+2mΩ)

Prospective short circuit current

0 ÷ 1999A, 1A

2.0 ÷ 9.9kA, 0.1kA

10 ÷ 1999kA, 1kA

Voltage: 190 ÷ 460V 1V ±(1.0%lettura+2cifre)

Frequency: 47.5 ÷ 52.5Hz 0.1Hz ±0.2Hz

Accessories:

Bag B80

Cable for continuity measurement C7000

Optical / RS-232 cable C2001

Optional accessories:

Cable for continuity measurement C7000/10

Cable for continuity measurement C7000/05
