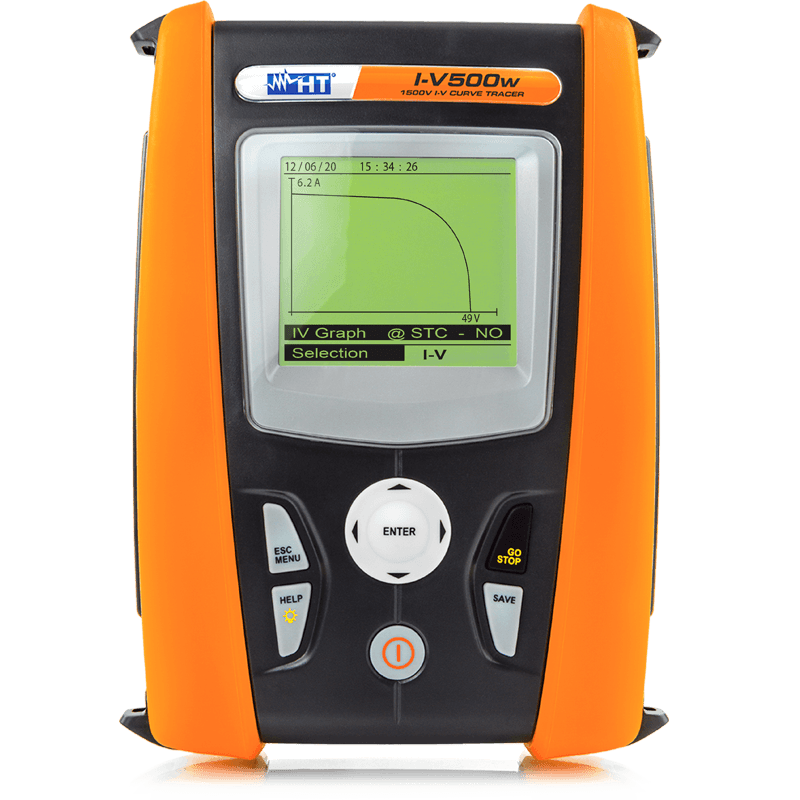

HT I-V500w Curve Tracer

Detection of I-V curve on PV modules and strings: 1500V/10A - 1000V/15A

Quick IVCK test for measuring Voc and Isc on PV modules and strings:VOC 1500V / ISC 15A

Internal memory capacity:249 I-V Curves

Use of remote unit SOLAR-02 with USB \ RF connection:RF

Custom management of internal PV module database:30 internal / 30.000 on software/app

Temperature measurement of cell and environment: Yes

Measurement of irradiation with reference cell: Yes

Summary table of main electric parameters: Yes

Provided PC interface with software for Windows : Yes

Integrated WiFi connection and compatibility with HTANALYSIS App : Yes

Backlit LCD display: Yes

Auto Power OFF : Yes

Protection category:CAT III

Weight in grams (batteries included):1200

Size (LxWxH) (mm):235x165x75

Datasheet

Brochure

Manual
