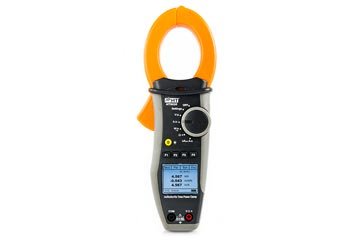

HT HT9020 AC+DC TRMS Power/Harmonic Clamp Meter

- DC VOLTAGE: 0.1~999.9V; ±(1.0%rdg + 3dgt)

- AC (AC+DC) TRMS VOLTAGE: ±(1.0%rdg + 3dgt)

- AC/DC VOLTAGE – MAX/MIN/CREST: 0.5 ~ 999.9V ; ±(3.5%rdg + 5dgt)

- DC CURRENT: 0.1 ~ 999.9A; ±(2.0%rdg + 5dgt)

- AC (AC+DC) TRMS CURRENT: 0.5 ~ 999.9A; ±(1.0%rdg + 5dgt)

- AC/DC CURRENT – MAX/MIN/CREST: 0.5~999.9A; ±(3.5%rdg + 5dgt)

- DYNAMIC INRUSH CURRENT DC, AC+DC TRMS:1.0~999A, ±(2.0%rdg + 5dgt)

- RESISTANCE AND CONTINUITY TEST 0.0Ω~29.9kΩ; ±(1.0%rdg + 5dgt)

- FREQUENCY WITH TEST LEADS AND WITH JAWS: 42.5 ~ 69.0Hz; ±(1.0%rdg + 5dgt)

- PHASE SEQUENCE AND PHASE CONFORMITY:

+ Voltage range: 100 ~ 1000V

+ Frequency range: 42.5 ~ 69Hz

+ Overload protection 1000VDC/ACrms

- DC POWER: 0~999.9 kW; ±(3.0%rdg + 3dgt)

- ACTIVE POWER, APPARENT POWER AC (AC+DC TRMS): 0~999.9 kW; ±(2.0%rdg + 3dgt)

- REACTIVE POWER AC (AC+DC TRMS): 0~999.9 kW; ±(2.0%rdg + 3dgt)

- ACTIVE ENERGY AC (AC+DC TRMS): 0~999.9 kW; ±(2.0%rdg + 3dgt)

- REACTIVE ENERGY AC (AC+DC TRMS)

: 0~999.9 kW; ±(2.0%rdg + 3dgt)

- POWER FACTOR: 0.20 ~ 1.00; ±(2.0% rdg+2dgt)

- VOLTAGE AND CURRENT HARMONICS:

+ 0 ; 0.1V /0.1A; ±(5.0%rdg+20dgt)

+ 1 ~ 25; ±(5.0%rdg+10dgt)

+ THD%; ±(10.0% rdg+10dgt)

STANDARD ACCESSORIES

Batteries

ISO9000 calibration certificate

User manual on CD-ROM and quick guide

YABRS0000NN0 Bag for transporting

YAAMK0000HT0 PAIR OF LEADS WITH 4MM TIP

YAAMK0001HT0 PAIR OF TEST LEADS ALLIGATOR CLIPS COLOUR RED/BLACK 4MM
