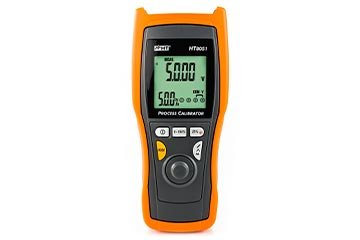

HT HT8051 Multifunction process calibrator

MEASURED DC VOLTAGE: 0.01~100.00mV/ 0.001~10.000V; ±(0.02% rdg +4dgt)

GENERATED DC VOLTAGE: 0.01~100.00mV/ 0.001~10.000V; ±(0.02% rdg +4dgt)

MEASURED DC CURRENT: 0.001~24.000mA; ±(0.02% rdg +4dgt)

GENERATED DC CURRENT: 0.001~24.000mA ; ±(0.02% rdg +4dgt)

LOOP MODE : 25VDC±10%

Display:

Characteristics: 5 LCD, double display, sign and decimal point

Overload indication: “-OL-” at display

Power supply:

Rechargeable battery: 1x7.4/8.4V 600mAh Li-ION

Battery life: approx 8 hours (@ SOUR mode 12mA, 500)

approx 15 hours (@ MEAS mode)

Alkaline battery: 1x9V type NEDA1604, 006P, IEC6F22

Mechanical characteristics:

Dimensions (L x W x H): 195 x 92 x 55mm

Weight (included battery): 400g

Environmental conditions of use:

Reference temperature: 18°C  28°C

Working temperature/humidity: -10 ÷ 40°C / <75%RH

Storage temperature/humidity: -20 ÷ 60°C / <75%RH

Standard guidelines:

Safety: IEC/EN61010-1, CAT I 30V

Insulation: double insulation

Pollution degree: 2

Max height of use: 2000m

STANDARD ACCESSORIES

Rechargable BAttery

Rigid case HT8051

Battery charger HT8051

User Manual

KIT0075

Datasheet

Manual
