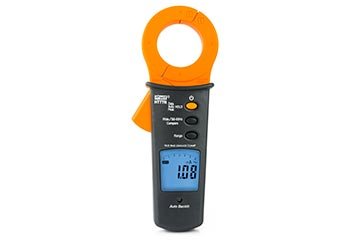

HT HT77C Leakage current clamp meter with LPF (6.000ACA)

AC TRMS Current:

6.000mA/ 60.00mA/ 600.0mA/ 6.000A; ±(1.0%rdg + 8dgt); ±(2.0%rdg + 11dgt); 120Arms 600Vrms

60.00A/ 100.0A; 0 ÷ 50A ± (1.0% rdg+8dgt) 50 ÷ 60A ± (5.0% rdg+6dgt)60 ÷ 100A ± (8.0% rdg+6dgt); 0 ÷ 40A ± (2.0%rdg+9dgt) 40 ÷ 100A ± (30%rdg+9dgt); 120Arms 600Vrms

AC TRMS Current with internal low pass filter :

6.000mA/ 60.00mA/ 600.0mA/ 6.000A; ±(2.0%rdg + 8dgt); ±(2.0%rdg + 11dgt); 120Arms 600Vrms

60.00A/ 100.0A; 0 ÷ 50A ± (2.0%rdg+8dgt) 50 ÷ 60A ± (6.0%rdg+8dgt) 60 ÷ 100A ± (9.0%rdg+8dgt) ; 120Arms 600Vrms

Display: LCD, 4 dgt, 6000 points, bargraph, backlight and decimal point

Function: Data HOLD; AC voltage detection without contact (NCV): range 200V ÷ 1000V, 50/60Hz

Measuring rate: 4 times/s

Over range indication: “OL” message at display

Conversion mode: TRMS

Power supply: 2 x 1.5V batteries type AAA LR03; about 60 hours of continuous operation

Auto Power OFF: after 20 minutes of idleness

Dimension: 200 x 70 x 40mm

Weight (including batteries): 265g

Max conductor size: 40mm

Accessories:

Bag B80

Batteries and user manual
