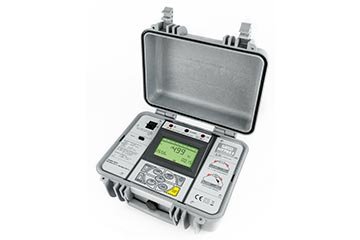

HT Instrument HT7051 Programmable digital 5kV insulation tester

DC/AC TRMS VOLTAGE: 10 ~ 660V ; ±(2%rdg+2dgt)

INSULATION RESISTANCE: 0.01MΩ ~ 9.99TΩ

GENERATED TEST VOLTAGE (compliance to IEC/EN61557-2):

TEST CURRENT: 100 ÷ 5000V ; 1mA ≤ Test Current ≤ 3mA

TEST TIME : 5s – 99min 59s

CAPACITANCE: 1nF~49.9µF; ±(10%rdg+5dgt)

LEAKAGE CURRENT : 1nA~ 2.5mA

P.I (Polarization Index) – D.A.R (Dielectric Absorption Ratio): 0.01 ~ 9.99

STANDARD ACCESSORIES

ISO9000 calibration certificate

TOPVIEW MULTI-LANGUAGE SOFTWARE + SERIAL CABLE C232NG1

BORSA2000 Bag for transporting

KIT14000 SET OF CABLES OR INSULATION MEASUREMENTS UP TO 5KV

C7051 SUPPLY CABLE FOR HT7051

Batteries and user manual
