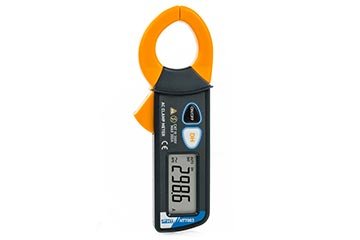

HT Instruments HT7003 Compact digital AC clamp (300ACA, TRMS)

Manufacturer: HT Instruments

Item: HP007003

Model: HT7003

Origin: China

Warranty: 12 months

AC CURRENT: 40.00A/ 200.0A; ± (1.8%rdg+5dgt); 400A AC (60s)

Display: LCD, 3 ¾ digits with maximum reading 4000 counts + decimal point

Function: Data HOLD

Measuring rate: 2.5 times per second.

Low battery indicator: The " BAT " appears at display

Altitude max of use: 2000m

Pollution degree: 2

Insulation: double insulation

Max. diameter conductor: 27 mm

Power supply: 1 x 3V disk battery type CR2032; Auto Power OFF function after 12 minutes of idleness

Dimension: 150 (H) x 52 (W) x 24 (L) mm

Weight: 110g (battery included)

Accessories:

Carrying bag HT7003

Batteries and user manual
