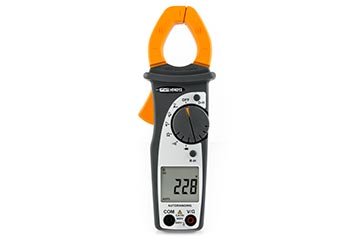

HT HT4012 clamp meter (AC 600A; True RMS)

DC VOLTAGE:

2V/ 20V/ 200V; ±(0.8%rdg+2gt); 600V DC/AC RMS

600V/ ±(1.0%rdg+2gt); 600V DC/AC RMS

AC VOLTAGE :

2V/ 20V/ 200V; ±(1.0%rdg+3dgt); 600V DC/AC RMS

600V; ±(1.2%rdg+3dgt); 600V DC/AC RMS

AC CURRENT: 200A/ 400A; ±(2.0%rdg+10dgt); 600A RMS (60 second)

RESISTANCE

200Ω; ±(1.0%rdg+5dgt); About 1.5 VDC; 600V RMS (60 second)

2kΩ/ 20kΩ/ 200kΩ/ 2MΩ; ±(1.0%rdg+3dgt); About 0.45 VDC; 600V RMS (60 second); 20MΩ; ±(3.0%rdg+3dgt); About 0.45 VDC; 600V RMS (60 second)

DIODE CHECK :; ±(0.5%rdg+3dgt); <3VDC

AUDIBLE CONTINUITY TEST : Continuity; Built-in buzzer sounds when reading is below approx. 25Ω, the buzzer turns off when reading is greater than 25Ω; <1.5VDC

Display:LCD 3 ½ digits with maximum reading 1900 counts. Decimal point and symbol indication; Automatic polarity indication.

Function: DCV, ACV, ACA, OHM, Diode check and Audible continuity tests.

Measuring rate: 2 times per second.

Indoor use

Altitude up to 2000m

Pollution degree: 2

Insulation: class 2 (double insulation)

Max. diameter conductor : 30 mm

Power supply: 2 x 1.5V IEC R03 AAA carbon-zinc or alkaline type batteries

AutoPowerOFF function for more of 10 minutes of don’t work

Dimension: 205 (H) x 64 (W) x 39 (L) mm

Weight: 280 grams with batteries included

Accessories:

Carrying bag

Rubber cap for test lead

Pair of Leads 4413-2

Batteries and user manual
