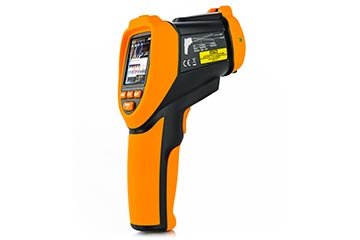

HT HT3320 Professional video infrared thermometer (-50°C~1000°C, ±(1.0%rdg + 1.0°C))

Infrared measurement

°C: -50°C ÷ 1000°C; ±3.5°C (-50 ÷ 20°C), ±(1.0%rdg + 1.0°C) (20 ÷ 500°C), ±1.5%rdg (500 ÷ 1000°C); 150ms

°F: -58°F ÷ 1832°F; ±6.3°F (-58 ÷ 68°F), ±(1.0%rdg + 1.8°F) (68 ÷ 932°F), ±1.5%rdg (932 ÷ 1832°F); 150ms

Spectral response : 8 ÷ 14µm

D/S ratio: 50:1

Emissivity range: 0.10 ÷ 1.00

Sensor: thermopile

Sighting: Laser marker <1mW (class 2)

Temperature with type K probe

°C: -50°C ÷ 1370°C; ±2.5°C (-50 ÷ 0°C); ±(0.5%rdg + 1.5°C) (0 ÷ 1370°C)

°F: -58°F ÷ 2498°F; ±4.5°F (-58 ÷ 32°F); ±(0.5%rdg + 2.7°F) (32 ÷ 2498°F)

Air temperature, Dew point temperature, Wet bulb: 0°C ÷ 50°C, (32°C ÷ 122°F); ±0.5°C / ±0.9°F (10 ÷ 40°C) / (50 ÷ 140°F), ±1.0°C / ±1.8°F (other ranges)

Relative humidity: 0 ÷ 100%RH; ±3%RH (40% ÷ 60%), ±3.5%RH (0% ÷ 40%) e (60% ÷ 80%), ±5%RH (80% ÷ 100%)

Display: 2.2” (320x240pxl LCD with backlight

Resolution of camera: 3kB (640x480pxl)

Power supply: 1x3.7V battery Li-ION 1400mAh

Battery life: approx. 4 hours in continue measurement

External adapter: 100-240VAC 50/60Hz / 5VDC

Auto power OFF: programmable 3, 15, 60min and disable

Internal memory: 70MB (50kB/pic; video 3.1MB/min)

External memory: micro SD card (max 8GB)

Dimensions (LxWxH): 205 ×155×62mm

Weight (included battery): 410g

Accessories:

Power supply battery charger

User Manual; Tripod; USB cable

Transport case HT3320

K-TYPE WIRE PROBE TK101

Batteries and user manual
