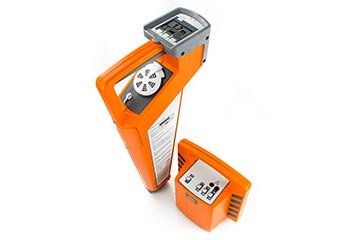

HT HT-5000 Localizer for buried cables and metal tubes

TX5000 Transmitter:

Transmitted power: 0.1W / 0.5W selectable

Frequency of integrated antenna: 32.768kHz

Power supply: 6x1.5V batteries type IEC LR20

Operating time: 40 hours (for intermittent use at 20°C)

Insulation: double insulation

Safety: IEC/EN61010-1

Category of measurement: CAT II / CAT III 440V and CAT IV 300V

Mechanical protection: IP56 (dust and water protection)

Working temperature: -20 ÷ 55°C (operation) ; -30 ÷ 70°C (storage)

Size (LxWxH): 260 x 255 x140mm

Weight (with batteries): 1.7kg

RX5000 Receiver:

Operating modes: Radio, Power network, Transmitter

Frequency range: 15Hz ÷ 23kHz (Radio) ; 50/60Hz (Power network) ; 32.768kHz (Transmitter)

Sensitivity: > 20µA (Radio) ; > 7µA (Power network) ; > 5µA (Transmitter)

Dynamic range: 120dB (Radio) ; 135dB (Power network) ; 120dB (Transmitter)

Depth determination: 0.3m ÷ 5m (finding cable) ; 0.3m ÷ 7m (finding probe)

Resolution depth measurement: 0.1m

Power supply: 10x1.5V batteries type IEC AA LR06

Operating time: 40 hours (for intermittent use at 20°C)

Insulation: double insulation

Safety: IEC/EN61010-1

Mechanical protection: IP67 (dust and water protection)

Working temperature: -20 ÷ 55°C (operation) ; -30 ÷ 70°C (storage)

Size (LxWxH): 600 x 252 x99mm

Weight (with batteries): 2.5kg

Accessories:

Batteries for transmitter and receiver

Metal probe

Transmitter TX5000 and receiver RX5000

Carrying bag HT-5000

Set of measuring cables with alligator clips

Batteries and user manual
