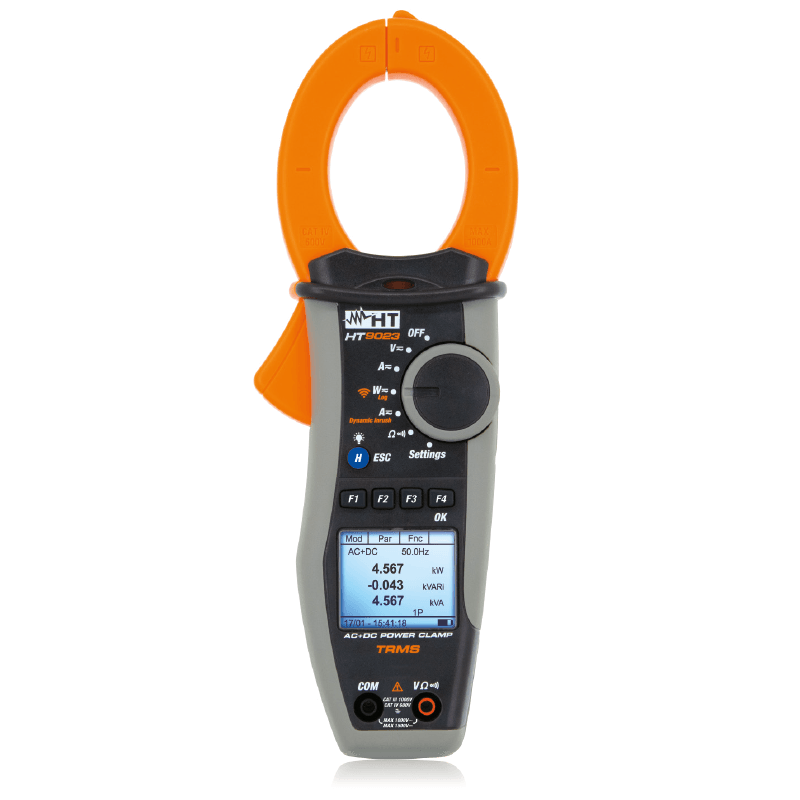

HT HT9023 TRMS AC/DC Clamp-on Power Quality Analyzer (AC/DC 1000A)

TRMS

Current measuring range: 1000A

AC/DC current: AC + DC

AC/DC voltage: 1000VAC/1500VDC

Frequency

Resistance and continuity test with buzzer

Phase sequence and phase concordance

AC/DC voltage, current measurement/recording

Measurement/recording of Cosphi, Power Factor

Measurement/recording of Active, Reactive, Apparent AC/DC Energy

Measurement/recording of V-I harmonics up to the 25th with THD%

Inrush current measurement (INRUSH): Dynamic INRUSH

Maximum diameter for clamp: 45mm

Measuring counts: 9999

Backlight

Autorange

Auto power off

Detection of AC voltage without contact

Data HOLD function

MIN/MAX function

PEAK function

Relative measurement

Datalogger and Graph

Memory for data saving

PC / Smartphone or Tablet interface: WiFi

AC/DC voltage in single-phase/three-phase systems: Single phase

AC/DC current in single-phase/three-phase systems: Single phase

Electric motor starting current (INRUSH)

Neutral-Ground Voltage

Neutral current

Max number of simultaneously selectable parameters: 60

Recording with selectable integration period:1s-15min

Indicative memory duration (in days @ PI= 30sec @ max number of parameters): 63 hours

Indication of recording duration

Internal memory capacity: 2MB

Saving instant sampled values

Summary table of main electric parameters

Voltage/current waveforms

Summary table of main electric parameters

Voltage/current waveforms

Tables or histograms of Harmonics and THD%

Voltage/current vector diagram

Power supply: 2x 1.5V AAA

Measurement category: CAT IV 600V CAT III 1000V

Weight in grams (batteries included): 420

Size (LxWx H) (mm): 252x88x44
