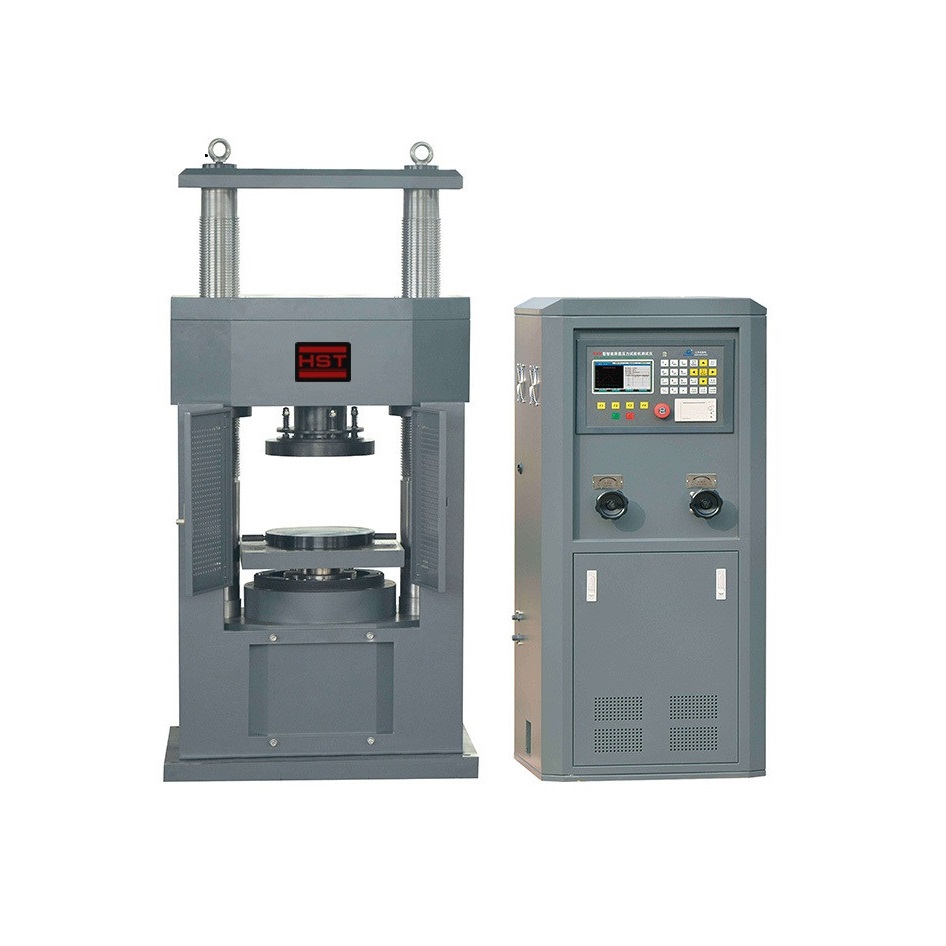

HST YES-3000E Digital Display Compression Testing Machine (3000kN/300Ton, AC380V)

Max. load: 3000kN/300Ton

Machine Class: 1 class

Range of test force: 4% ~100%FS

Indicating value accuracy: ±1%

Piston stroke: 200mm

Distance between upper and lower platen: 650mm

Upper and lower platen size: Φ300mm (Can be customized)

Display: LCD

Power supply: AC380V/50Hz/3 phase(can be customized)

Size: 960×740×2080 mm

Weight: 3100 kg

Main configuration:

Main unit and oil source control cabinet1 set

High precision compression sensor1 pc

English version operate instrument1 suit

Micro printers1 set

Specialized compression attachment1 suit

Accompany tools1 suit

Accompany documents1suit

Bending fixtureOptional
