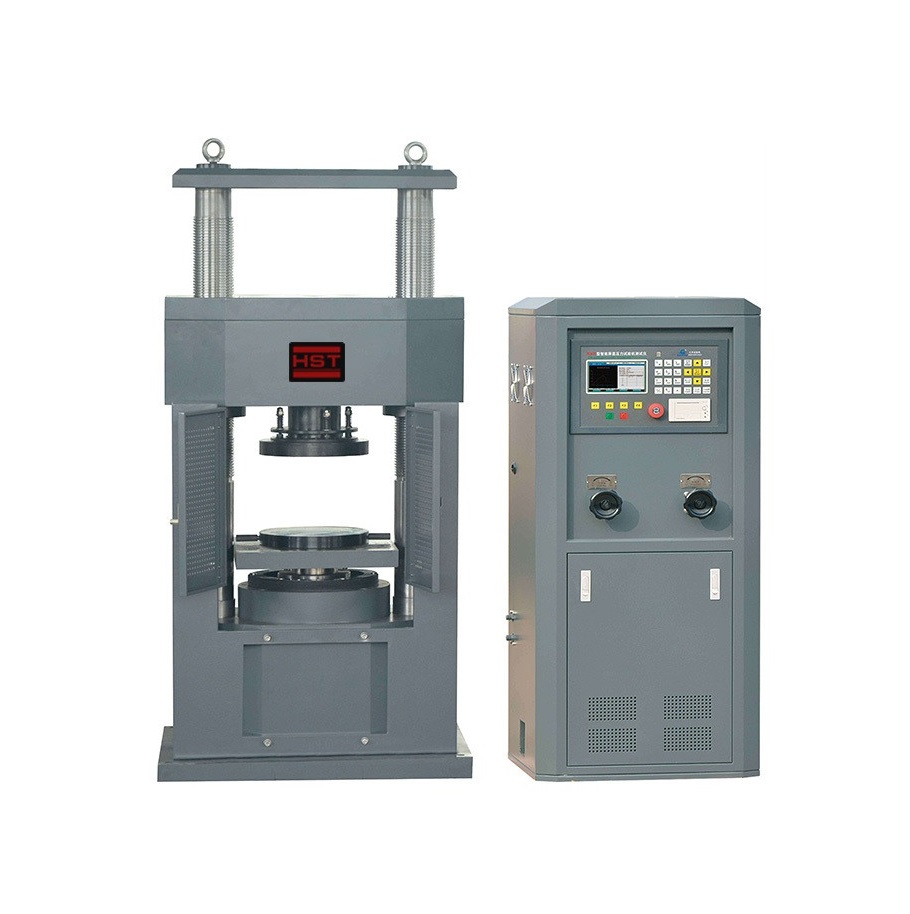

HST YES-1000E Digital Display Compression Testing Machine (1000kN/100Ton, AC380V)

Max. load: 1000kN/100Ton

Machine Class: 1 class

Range of test force: 4% ~100%FS

Indicating value accuracy: ±1%

Piston stroke: 150mm

Distance between upper and lower platen: 600mm

Upper and lower platen size: 300*300mm (tùy chỉnh)

Display: LCD

Power supply: AC380V/50Hz/3 phase(tùy chỉnh)

Size: 900×400×1150 mm

Weight: 750kg

Main configuration

Main unit and oil source control cabinet1 set

High precision compression sensor1 pc

English version operate instrument1 suit

Micro printers1 set

Specialized compression attachment1 suit

Accompany tools1 suit

Accompany documents1suit

Bending fixtureOptional
