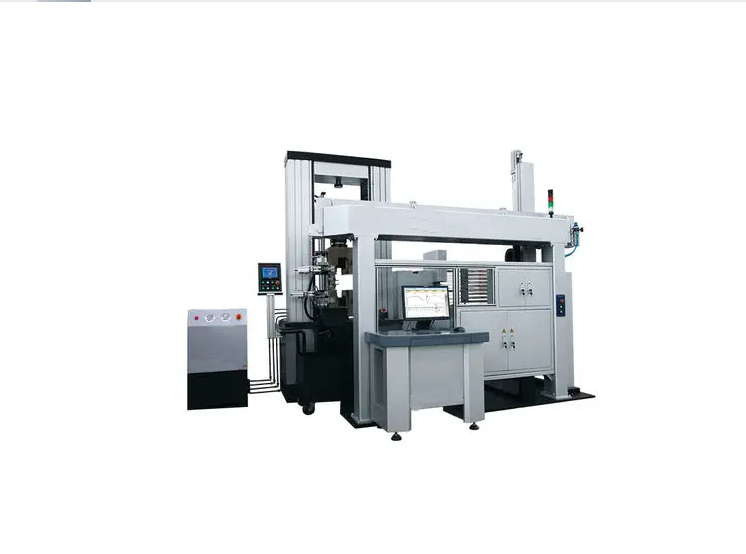

HST WAW-600G Computer Control Full Auto Electronic Tensile Testing Machine (600KN, 220V)

>> Main host and controller

Max. load: 600KN

Testing level: 0.5 Class

Driving way: Servo control, electric servo, medium control gas island

Test speed: 0.001-200mm/min stepless setting

Speed accuracy: ±0.5%

Full load speed and speed accuracy: 200mm/min, ±0.5%

Power supply: Three-phase 10kW

Host size: 1500* 900* 2780mm (width includes PLC manual box)

Oil source size: 380 * 550 * 600 mm

Complete equipment size: 4460* 2540* 2780 mm

Total weight: 9600kg

>> Load sensor

Measuring accuracy level: 0.5 class

Load resolution: 500000 yards (equivalent to 1.2N)

Stress control accuracy: ±0.5%

Strain control accuracy: ±0.5%

Displacement

Measurement range: 0 ~ 550mm

Digital longitudinal automatic extensometer

Accuracy level: Exceeds EN10002 level 0.5 standard;

Working temperature: 0--50 °C

Net weight (including measurement control unit): 26kg

>> Double-sided flat push hydraulic automatic stretching fixture

Double-sided push-pull hydraulic clamp: jaw clamping range: 0-60mm (can hold specimen with certain deflection)

Max. Clamping force: 904kN

Max. System pressure: 28.8MPa

>> Specimen double section size automatic measurement system

Specimen type: Rectangular shape specimen

Measurement accuracy: ±0.5%

Power supply: Single phase 220V±10%, 50Hz, 500W
