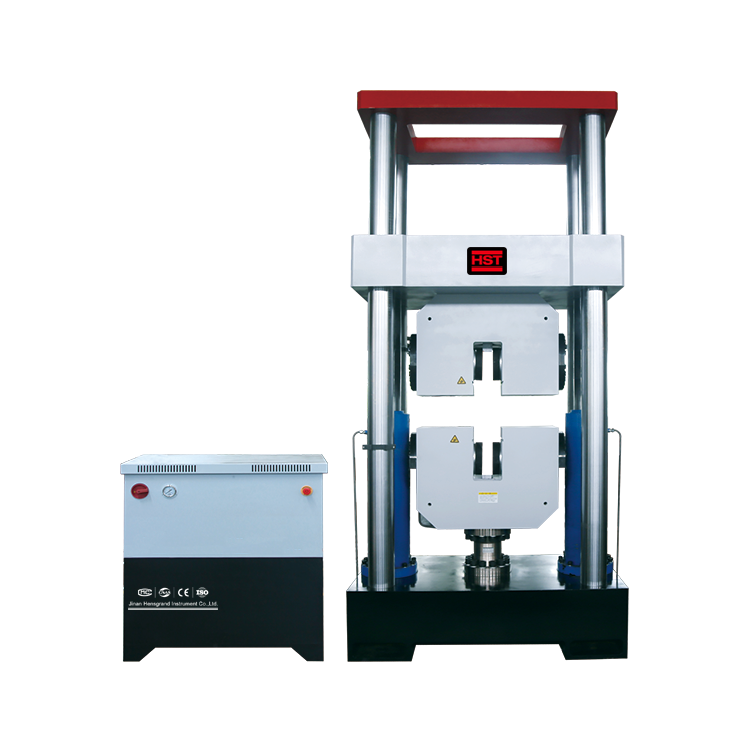

HST WAW-2000H Computerized Electro-hydraulic Servo Universal Testing Machine (2000kN, AC380V)

Max.Load: 2000KN

Load Accuracy: ≤± 1%

Load Range: 2%~100% FS

Load Resolution: 1/300000

Deformation Measurement Range: 2%~100%FS

Deformation Indication Relative Error: ≤ ±0.5%

Displacement Resolution: 0.01mm

Displacement Indication Relative Error: ≤ ±0.5%

Max. Piston Moving Speed: 0~100mm/min Stepless Speed Adjusting

Clamping Method: Hydraulic Automatic Clamping

Round Specimen Clamping Range: Φ10~Φ30 mm, Φ30~Φ50 mm, Φ50~Φ70 mm

Flat Specimen Clamping Range: 0~25mm, 25~50mm

Flat Specimen Clamping Width: 140mm

Flat Specimen Clamping Length: 160mm

Compression Plate Size: Φ240mm

Bending Roller Distance: 450mm

Width Of Bending Rollers: 120mm

Host Dimension: 1330*880*2625mm

Control Cabinet Dimension: 1000*1005*1500mm

Host Weight: 7Tons

Power Supply: 3-Phase 4-Wires, AC 380V, 50Hz, 9kW
