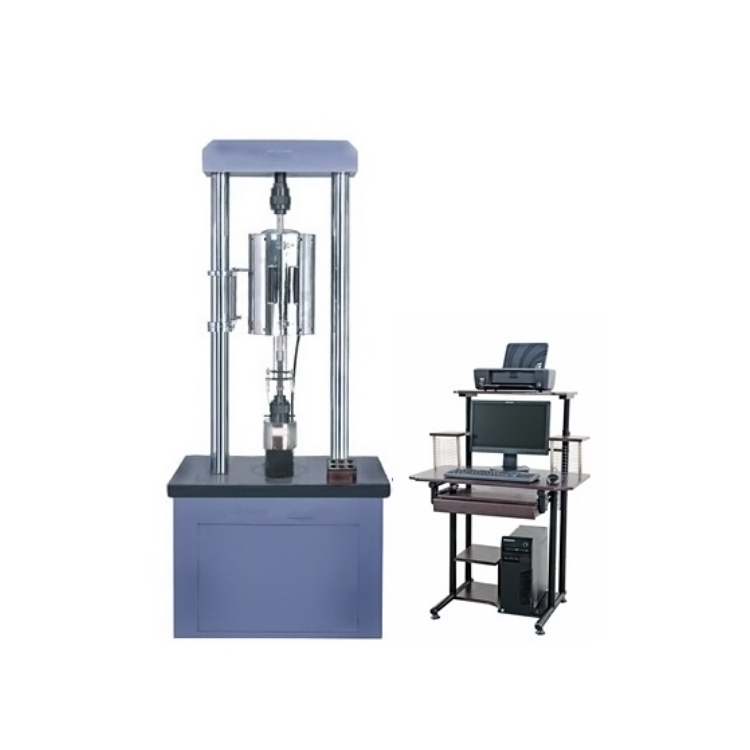

HST RHW-10kN Electronic High-temperature Endurance Creep Testing Machine (10kN, AC380V)

>> Max. Load force: 10kN

Class: 0.5

Load Range: 0.4%-100%

Resolution of Load Force: 1/300000 of Full Scale

Relative Error of Load force Reading: ±0.5%

Lower pull rod speed: 0.01-100mm/min

Lower Stroke: 200mm

Power Supply: AC380V hearth size±10%；50Hz

>> Electric stove and temperature control system

High temperature stove type: Folio-style atmosphere furnace (three sections), electric wire heat

Temperature range: 300～1100℃

Electric stove rise fall type: manual rotary

Heating power: 5KW

>> Creep measurements

Test range of deformation: 0～10mm

Error of deformation reading: ≤0.5％FS

Resolution of deformation: 0.001mm
