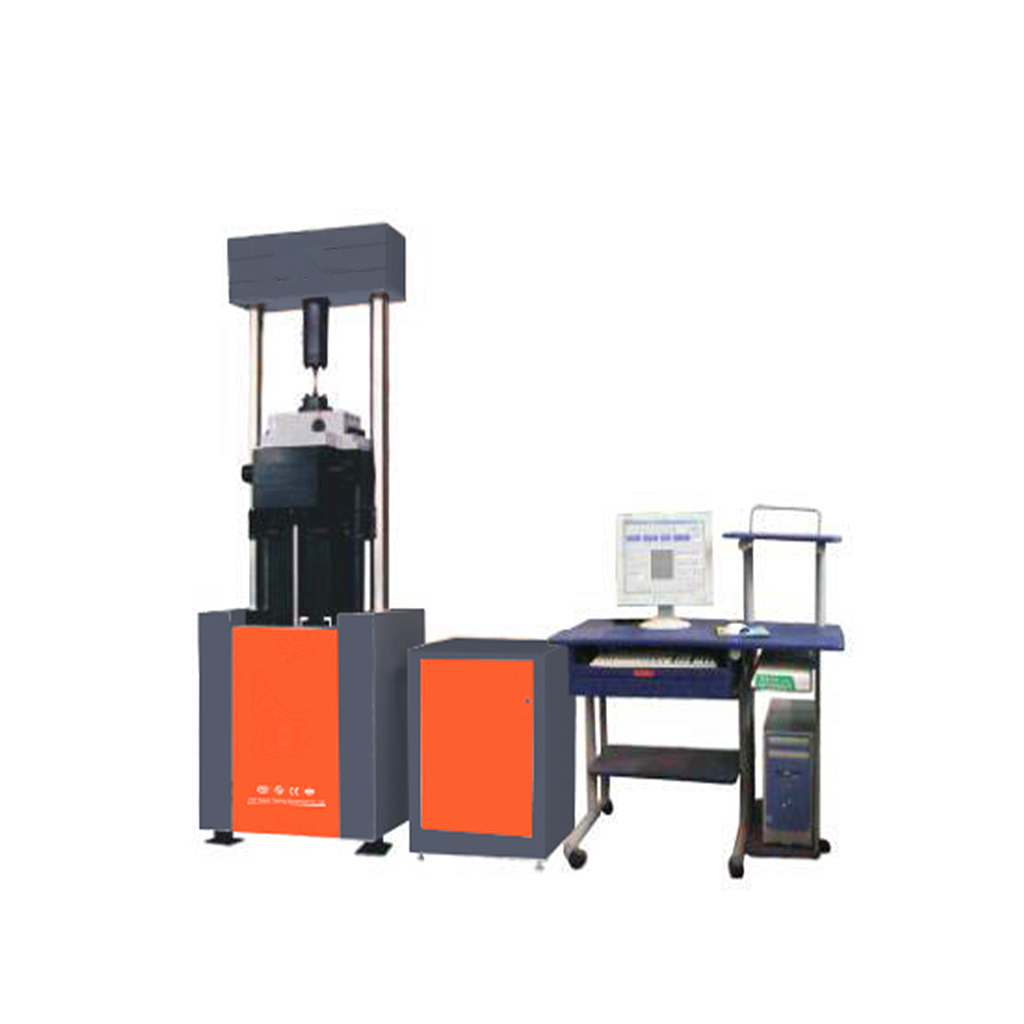

HST PLG-100C High Frequency Fatigue Testing Machine (±100kN, 50~300hz)
ManufacturerHST(View more products from this manufacturer)
ModelPLG-100C
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Frequency: 50~300hz
Load capacity (kN): ±100
Load capacity for dynamic (peak value) (kN): 50 or 70
Relative error of static load: ≤±1%
Power: 300VA
Load 0.5%F-S fluctuation
Dynamic: 0.5%F-S
Static: 0.5%F-S
Max. distance between grips(mm): 800
Max. distance between columns (mm): 500
Dimension(mm)
Load frame: 800*700*3100
Control cabinet: 600×600×1200
Weight(kg)
Load frame: 2750
Control cabinet: 70
Optional: high temperature furnace and high temperature extensometer, fatigue crack rate test;
