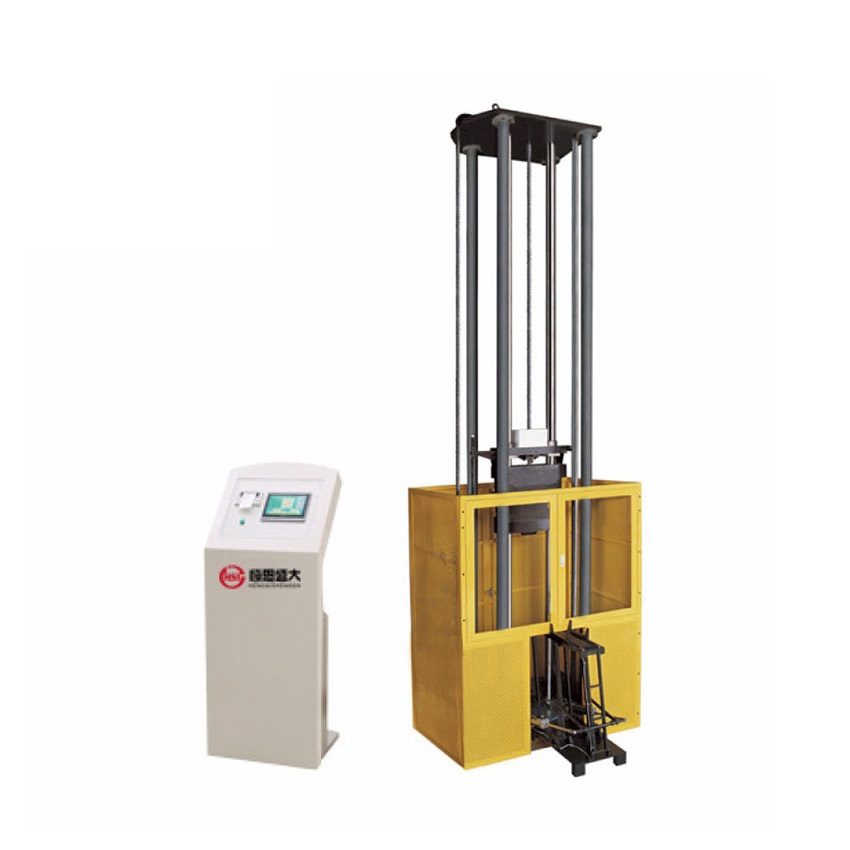

HST NDT-2000 Drop Weight Impact Testing Machine (2000J, 3400mm)

Maximum Energy(J): 2000

Minimum Energy(J): 300

Maximum Tup Mass(kg): 60

Tup Mass Accuracy: ±1%

Drop Height(mm): 750～3400

Velocity Of Drop(m/s): 3.8～7.6

Hammer Lifting Speed(m/min): 3

Height Resolution: 0.1

Height Accuracy(mm): ≤±10

Hardness Of Tup Nose: HRC58-62

Radius Of Tup Nose(mm): R25.4±2.5

Sample Centered Error(mm): ±1

Support Anvil Span: P-1、P-2、P-3

Specimen Dimension: P-1:(360±1)×(90±2)×(25±2.5)P-2:(130±1)×(50±1)×(20±1)P-3:(130±1)×(50±1)×(16±0.5)

Power Supply: 380v±10%,50/60Hz
