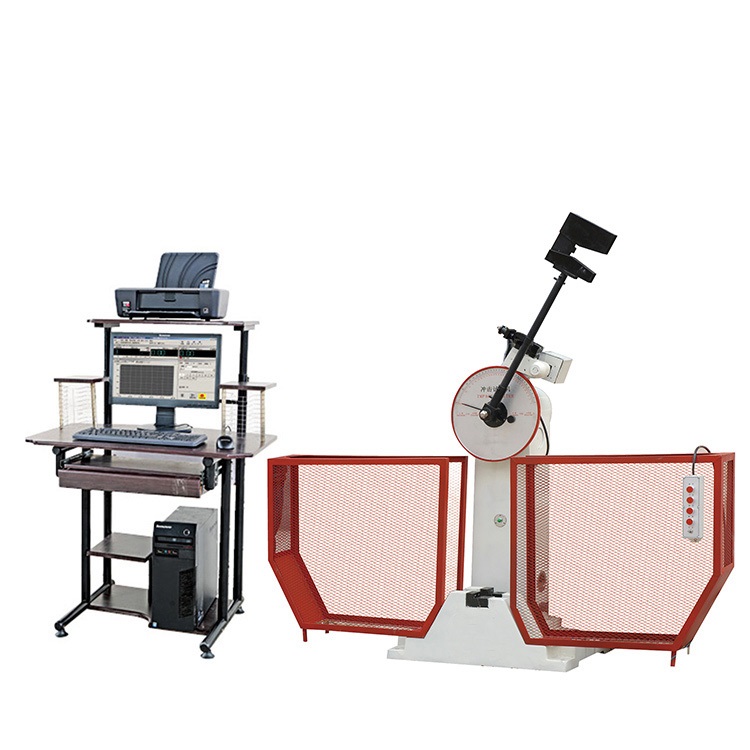

HST JBW-300B Computer Display Semi Automatic Impact Testing Machine (150/300J, 380V)

Display: computer Display semi automatic

Min reading value: 1 J

Impact energy: 150/300J

The distance between the pendulum shaft and impact point: 750mm

Impact speed: 5.2m/s

Pre-rising angle of the pendulum: 150°

Specimen bearer span: 40+0.2mm

Round angle of bearing jaw: R1.0-1.5mm

Round angle of impact blade: R2.0-2.5mm,(R8mm)

Thickness of impact blade: 16mm

Angle accuracy: 0.1°

Standard specimen dimension: 10mm×10mm×55mm

Sample box capacity: 10 pcs

Power supply: 380V, 50Hz , 3 wire and 4phrases

Dimensions (mm): 2124 x 600 x 1340

Net Weight (kg): 450
