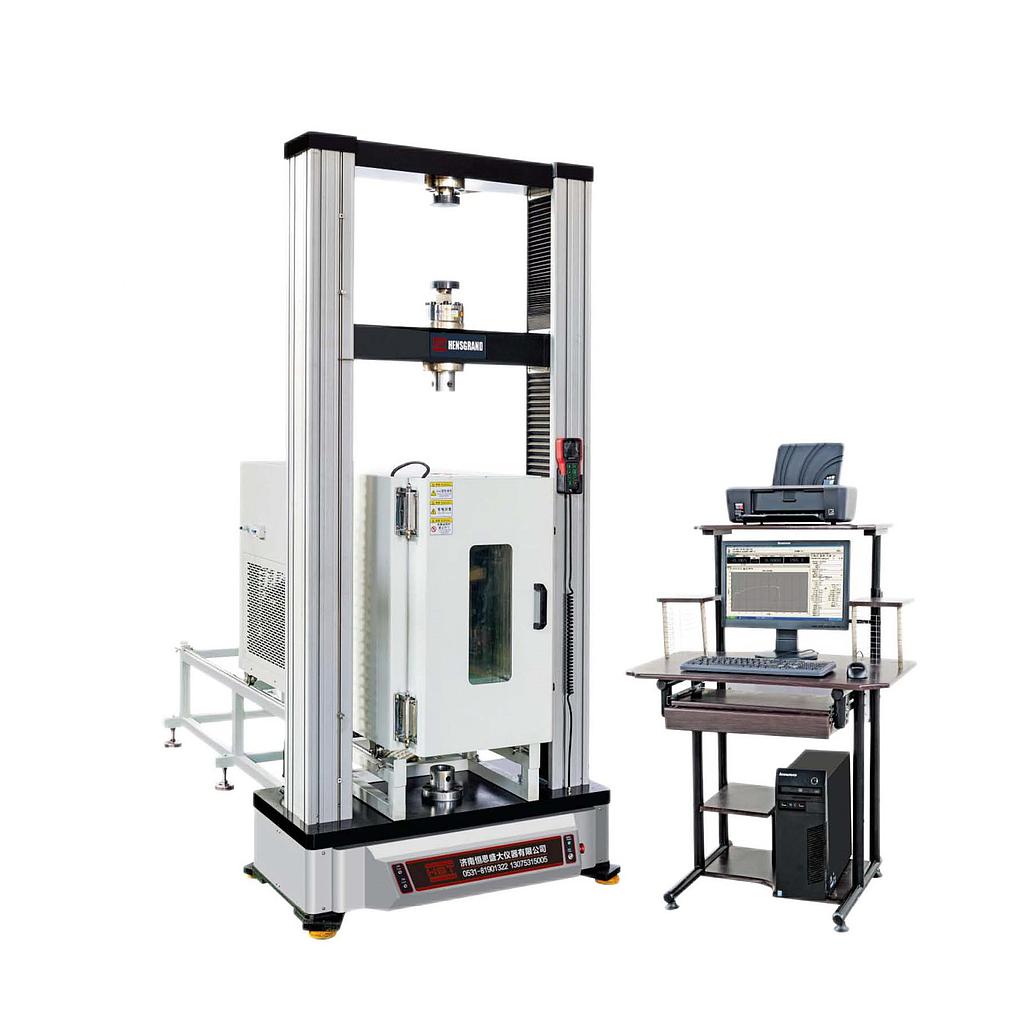

HST HST-100EGD Electromechanical Testing Machine (100kN)

Testing Machine Specifications

Load Capacity (kN): 100

Load accuracy: Class 0.5

Testing Load Accuracy: ±0.5%

Testing Load Range(FS): 0.2%-100%

Load Resolution: 1/500,000FS

Deformation accuracy: ≤±0.5% of 0.4%~100% of rated capacity

Position resolution (mm):0.025μm

Position accuracy: ±0.02mm or 0.5% of displacement (whichever is greater)

Crosshead speed range (mm/min):0.001-500

Crosshead speed accuracy: ±0.5% of set speed (zero or constant load)

Crosshead Travel (mm): 1100

Room temperature Tensile Space (mm): 650

Room temperature Compression Space (mm): 1000

Room temperature Test width (mm): 550

Load cell: High-precision USA load cell

Position limit switch: Upper and lower lights

Power Supply: AC220V±10%, 50Hz/60Hz

Overall Dimensions (L*W*H, mm): According to the size of High and Low temperature test chamber

Weight (kg): According to the size of High and Low temperature test chamber

High and low temperature environmental test chamber Specifications

Operating temperature range: -40 -150℃

Cooling system: compressor

Temperature uniformity: < 200 ≤±2°C, ≥ 200 ≤±3,5°C

Temperature Fluctuation: ≤±1°C

Heating rate: 2-3℃/min

Power: 220V

Material of inner box: stainless steel

Outer box material: stainless steel

Heating system: Nickel-chromium alloy heating wire heater

Insulation Materials: Ultra-fine glass wool or rigid foam

Air supply circulation system: a: motor b: lengthened shaft c: centrifugal fan

Chamber Door: Monolithic door

Controller: Temperature Controller

Control panel: Rotary switch

Inside dimensions (mm): 350*260*400

Outside dimensions (mm): 1100*420*560
