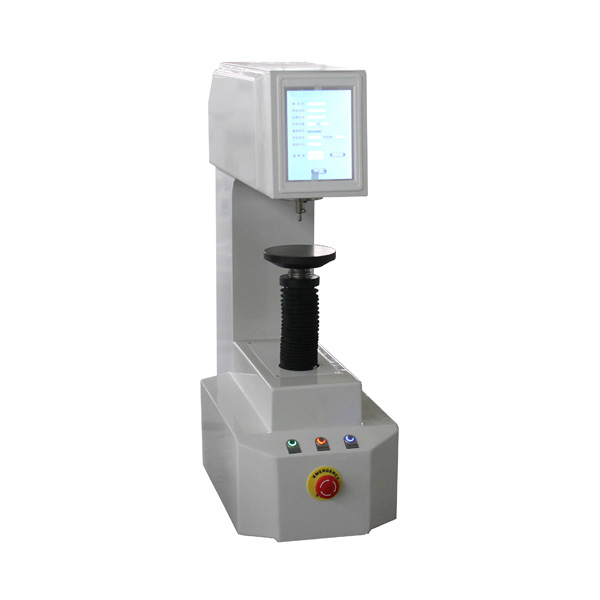

HST HRS-150D-Z Automatic Rockwell Hardness Tester (150kgf)

Exchange Scales: Superficial Rockwell, Brinell, Vickers

Max Height of Specimen : 175mm, Added Height: 400mm

Data Output: Built-in Printer, RS232 Interface

Carry Out Standard: Chinese Standard GB/T230.1, GB/T230.2, JJG112 Inspection Rule, ASTM Standard

Distance between Indenter to outer wall: 160mm

Specimen Auto- rising Speed: 3mm/s

Initial Test Force: 10kgf(98.07N)

Test Force: 60kgf(588N), 100kgf(980N), 150kgf(1471N)

Rockwell Scales: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK

Hardness Test Range: HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRF: 60-100, HRG：30-94, HRH：80-100, HRK：40-100

Power Supply: AC220+5%,50~60Hz

Overall Dimension (mm): 520x240x720mm

Net Weight of Main Tester: About 65kg

Datasheet

Features

1. Specimen will be raised up automatically (without height limited)

2. Automatically load the initial test force

3. Automatically load the main test force

4. Automatically measure the hardness values

5. Hardness value automatically be digitally displayed

6. May test with such Rockwell scales as HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK

7. Automatically revise the measuring errors

8. Automatically hardness exchange

9. Print the test result with a built-in printer
