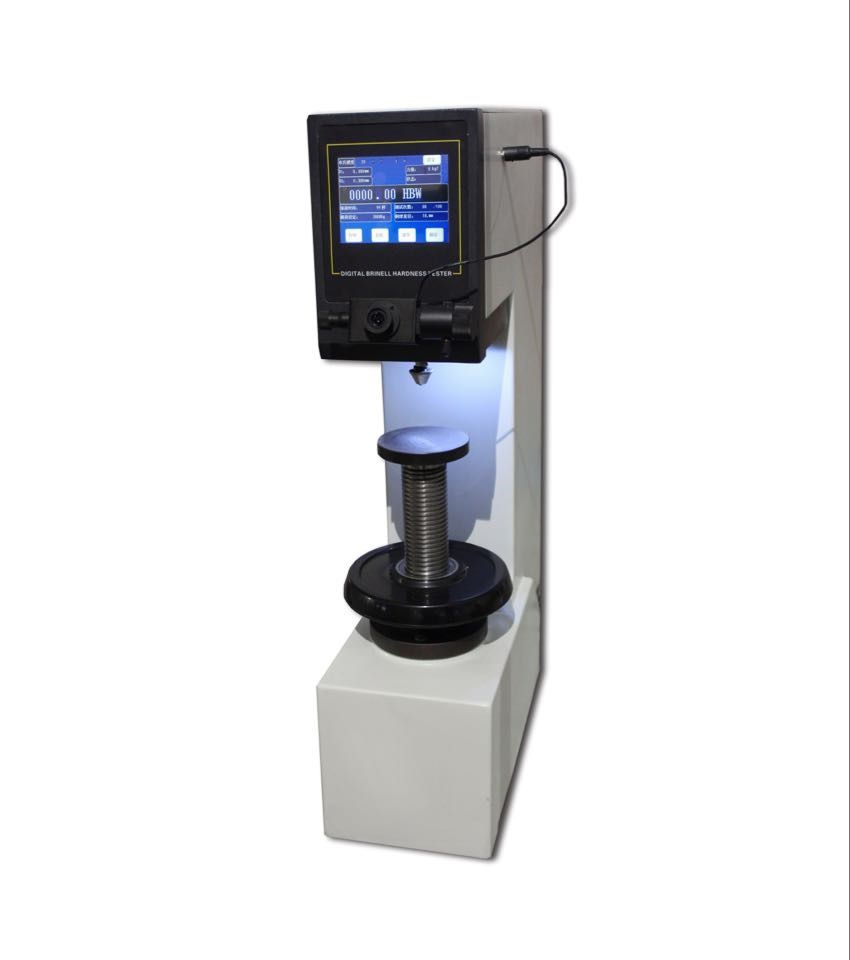

Application: Determination of ferrous, non-ferrous metals and brinell hardness of bearing alloy materials, application range is wide, suitable for precision measurement of the parallel plane. The surface is stable and reliable measurement.
Test range：8-450HBS，8-650HBW
Test force：1.839、2.452、7.355、9.807、29.42KN（187.5、250、750、1000、3000kgf）
Max height of test piece:230mm
Depth of throat: 120mm
Power supply: 220V
Dimensions: 700*268*842mm
Weight: 210KG
Standard accessories:
1. Large flat anvil,small flat anvil,V-notch anvil: 1pcs,each;
2. Tungsten carbide ball penetrator: Φ2.5,Φ5,Φ10,1pc.each
3. Brinell standardized block: 2pces.
4. Optional printer
