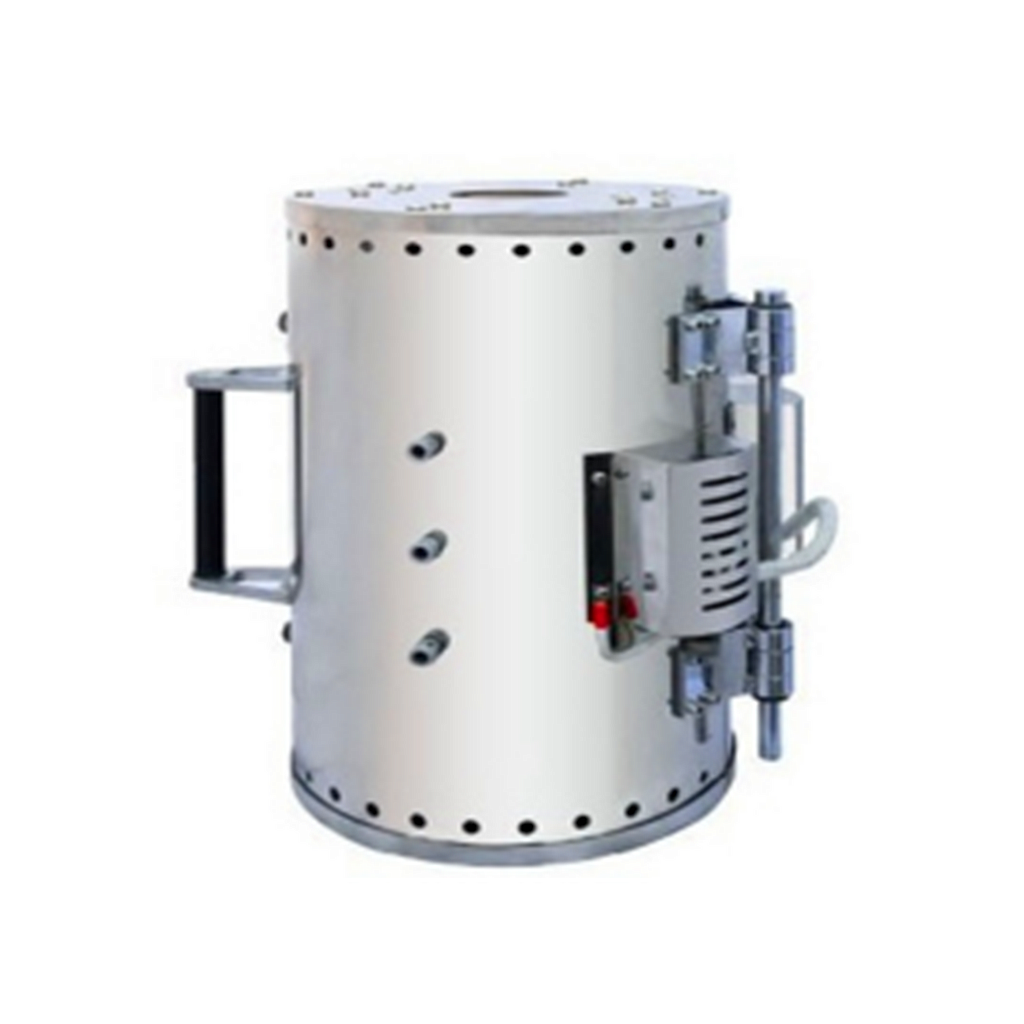

HST GWT1200 High Temperature Furnace For Testing Machine (K-type, 100~1100°C)

Installation way: vertical type

Working temperature: 100~1100°C

Long-term working temperature: 1000°C

Heating element material: FeCrAl resistance wire

Furnace wire diameter: φ1.5mm

Thermometric element: K type temperature measuring thermocouple

Temperature measuring accuracy: 0.2%

hearth inner diameter: Diameter×length:φ 90×300(240,380)mm

Temperature accuracy: Test temperature (°C)

≤300~600

≥600~900

>900

Heath inner diameter: Diameter x length: 80 mm

Dimension: diameter x length:φ300×450mm

Working voltage: 380v

temeprature heating power: Temperature limit power 5kw
