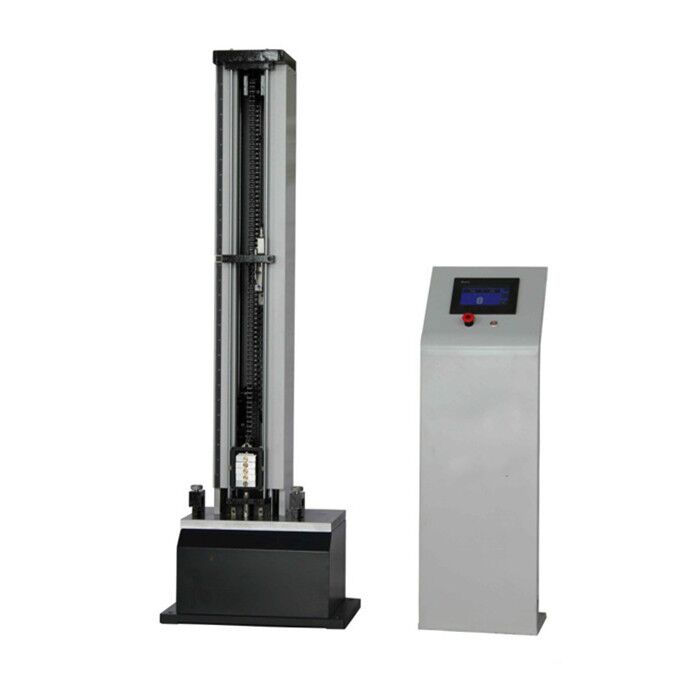

HST GCJ-1000 Optical Fiber Cable Impact Testing Machine

Application: intended to determine the ability of optical fiber cable withstand impact

1. Impacting height: 300mm, 1000mm, adjustable.

2. Mass of hammer

3. Six combinations of 0.5Kg, 1Kg, 2Kg, 3Kg, and 6Kg.

4. Testing times range: 1-9999.

5. Setting range of frequency

Setting range of testing times for national standard: 10～20 times/min.

Setting range of testing times for military standard: 10～30 times/min.

6. Power supply: 3-phase 4-wire, 50Hz, 2KW.

7. Ambient temperature: 10℃～40℃.

8. Ambient humidity: less than 80% (Non-condensing).
