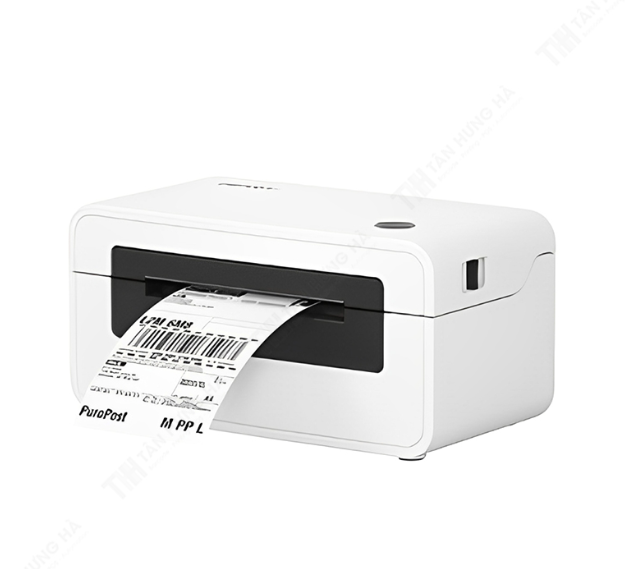

HPRT N41 Thermal Label Printer (203 dpi)

Printing Method: Direct Thermal

Resolution: 203 dpi (8 dots/mm)

Speed Maximum: 4 ips (100 mm/s)

Width Maximum: 108 mm

Length Maximum: 300 mm

Processor: 32 bit RISC CPU

Memory: RAM 2 MB; Flash 2 MB

Detection: Sensors: Label edge detection, Out of paper detection, Gap detection, Black mark detection, Coveropen detection

Media

Type: Folded paper or roll paper, die-cut label, black mark paper

Width: 2"(50mm)-4.65"(118mm)

Thickness: 0.003"(60μm）-0.0087"（220μm）

External paper roll: Max OD 5"(127mm)

External folding paper: W:100mmx L:100mm-300mm

Programming language: TSPL

Software

Label Design: Customer can download third-party editing software for label design

Driver: HPRT Driver： Windows XP，Vista,7，8，10.Linux,Mac

Resident Fonts: Full ASCII 8×16, 12×24 bitmap fonts, up to 10 times enlarge, 4 directional rotation

Code Pages: DOS437,720,737,755,775,850,852,855,856,857,858,860,862,863,864,865,866, Windows1250,

1251,1252,1253,1254,1255,1256,1257,1258ISO8859-1,-2,-3,-4,-5,-6,-8,-9,-15

Barcode 1D: Code 39, Code 93, Code 128UCC,Code 128 subset A, B, C

2D: QR Code

Interfaces: Standard: USB

Control Panel: One Feed button(three colors for differentthree states) Tear paper from above Coordinated type of paper guidding roller Automatic paper suction from back and then positioning

Power Adapter

Input AC100V ~240V 1.5A 50/60Hz

Output DC24V/2.5A

Environment:

Operation: 41℉( 5℃ )-104℉(40℃)， 30%-85%RH

Storage: -4℉(-20℃)-122℉(50℃)， 10%-90%RH

Physical Dimension: 220mm(L)x 120mm(W) x 108mm(T)

Characteristics Weight: 1.5kg

Optional Accessories: External 5'' roll stand or folding paper box

Agency Approvals: CCC,FCC,CE
