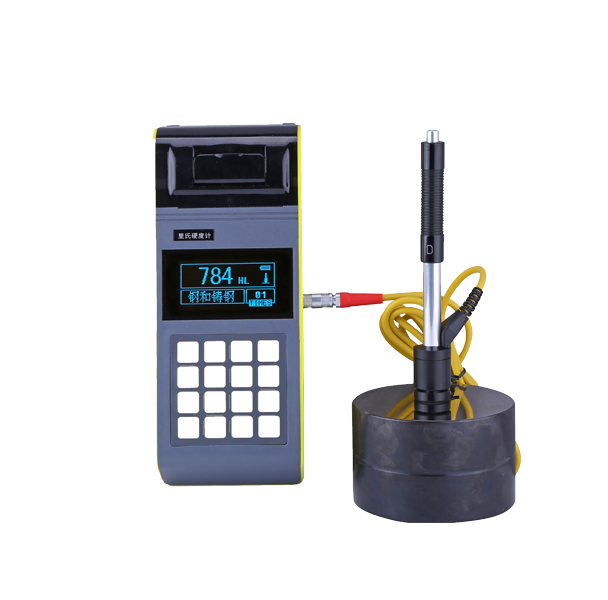

Hoyamo SHL-160 Portable Leeb Hardness Tester (170 to 960)

Hardness system: Leeb (HL), Brinell (HB), Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV) and Shore (HS)

Measurement range: HLD (170 to 960), HRA (59 to 85), HRB (13 to 100), HRC (18 to 68), HB (19 to 655), HV (80 to 976), HS (32 to 100)

Measuring direction: 360° (vertical downward, obliquely downward, horizontal, oblique upward, vertical upward)

Measuring materials: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper and forged steel

Display: LCD, 128×64 graphics dot matrix LCD

Print function: Thermal print head, quiet, ready to print measurement results

Printing paper: width 57.5±0.5mm, diameter 30mm

Data storage: 373～2688 groups (impact times 32～1)

Communication interface: standard USB2.0

Charging power supply: 9VDC, 220VAC

Charging time: 4 to 5 hours

Battery: 7.4V, lithium battery (1500mAh)

Ambient temperature: 0～40°C

Storage temperature: -25～70°C

Working hours: about 300 hours

Standard configuration:

• Main part

• D type impact device

• Small support ring

• Nylon Brush (I)

• High value Leeb hardness block

• Charger

• Communication cable

Optional accessories:

• Data processing software (application on computer)

• Various shaped impact devices and support rings

• High, medium and low value hardness block

Datasheet
