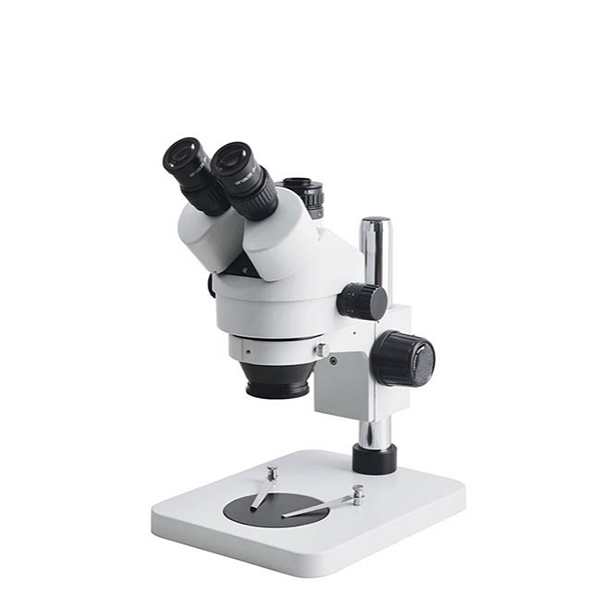

Observation Head: 45°decline, 360°rotate, Pupil distance 54---76mm Bilateral visual adjustment±5° Hinged Trinocular
Eyepiece: Standard WF10X20
Optional eyepiece: WF10X20mm，WF15X15mm，WF20X10mm，WF25X9mm，WF30X8mm
Magnification: Standard 7X---45X Optional and auxiliary lenses can be extended to 2.1X---270X Continuous doubling
Objective: 0.7X---4.5X Zoom Range Objective magnification ratio 1：6.4 Ensure image alignment
Auxiliary Lens: 0.3X，0.5X，0.7X，1X，1.5X, 2X(Optional)
Working Distance: 100mm
Focusing Bracket: 76mm diameter, 32mm pole size
Stand: TO column type small flat base (Standard) Other base can be selected, see the base series for details
Illumination: Optional LED Illumination, see LED light source series diagram for details
Plate: Black/ White plate
Dimension: 200mm(W)X273mm(D)X280mm(H)
Photographic Eyepiece: 1/2CTV，1/3CTV，0.35XCTV，0.5XCTV，1XCTV
Production Feature：
Brand-new optical design, the beat reproduction and true color image;
Horizontal zoom knob, easy operation;
Kings of stands and attachments are available;
Applied to modern biology research, semiconductor and the other science and technology industry filed to meet high precision requirement.
