Color Space: CIELAB CIELCH CIEXYZ sRGB
Color Difference Formula: △E*ab △E*LCH
Measurement Caliber: Φ40mm/φ8mm/φ4mm Alternative
Illumination Condition: CIE Recommendation：8/d
Light Source: D65 A F(CWF)
Sensor: Photodiode array
Observer: CIE 10° Standard observer
Measurement Range: L: 0 to 100
Repeated Accuracy: △E<0.06
Table Difference: △E<0.2
Measurement Interval: 0.5 Sec.
Storage Capacity: Type sample data : 100 groups with testing sample data: 200 groups
Lifetime of Bulb: 5 years more than 1.6 million measurements
Display Screen: TFT true color 2.8inch@(16:9)
Language: English/Simplified Chinese
Interface of External: USB2.0 (USB-B)- data communication with 《color analysis system》software RS-232 (115200bps)- connected with micro printer
Working Temperature Range: 0℃-40℃（32℉-104℉）
Storage Temperature Range: -20℃-50℃（-4℉-122℉）
Humidity Range: Relative humidity less than 85%,without condensation
Weight: 700g
Size: 199*68*90mm
Package Size: 400*240*340mm
Battery Charging Time: 8 hrs
Battery: Li-ion battery, 5000 times Measurement
Standard Accessories: AC adapter/ 3000mAH Li-ion battery
Optional Accessories: Flour measuring device/Micro printer

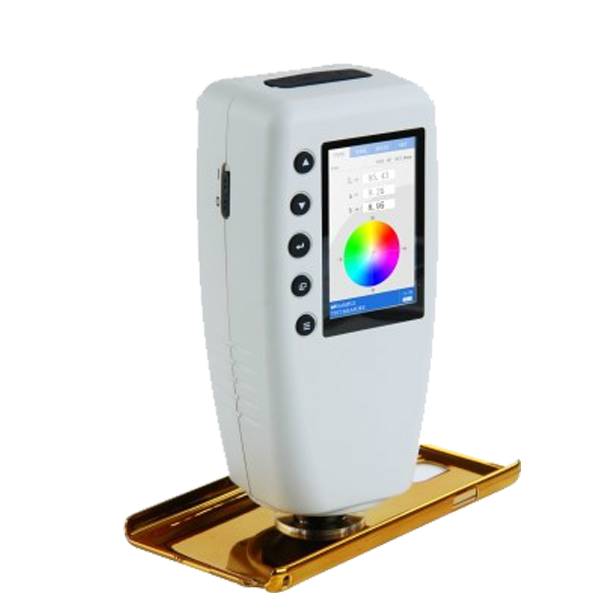

HSC-3 includes 3 switchable calibers (4mm/8mm/40mm) this version is a specially designed, high performance precision colorimeter, caliber 4mm can apply on small area, cambered and other special surface, caliber 8mm is a universal type for many field, also caliber 16mm can be used for huge, texture and pitting surface. It can bring great convenience for the user in the color quality detection on all kinds of measuring material.
