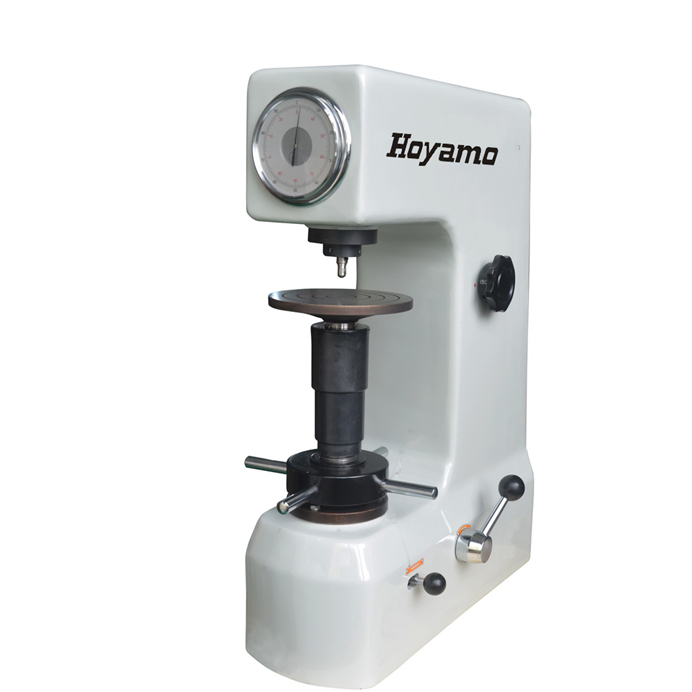

Hoyamo HR-150A Manual Rockwell Hardness Tester

Rockwell Scales: HL,HRC ,HRB, HRA, HV,HB,HS

Preliminary Test Force: 10Kgf(98.07N)

Test Force: 60Kgf(558.4N), 100Kgf(980.7N), 150Kgf(1471N)

Dwell Time: Adjustable 1-60s

Hardness Indication: Analogue Display

Resolution: 0.5HR

Loading Control: Manual

Max. Height Of Specimen: 175mm

Instrument Throat: 165mm

Dimension(LxWxH): 546x182x755mm

Packing Dimension: 620x460x870mm

Gross/Net Weight: 110Kg/90Kg

Execution Standard: ISO 6508，ASTM E18，JIS Z2245，GB/T230

Standard Delivery：

• Instrument

• Hardness Block（20-33）HRC

• Hardness Block（57-70）HRC

• Hardness Block（85-100）HRB

• Ø150mm Flat Anvil

• Ø60mm Flat Anvil

• Ø40mm V-shape Anvil

• Toolbox

• Warranty Card / Qualified Certificate

• Ø1.588mm Ball Intender

• Power Cord

• Cone Diamond Intender

• Weight A

• Weight B

• Weight C

• Dust Cover

• Bubble Level Meter

• Operation Manual / Packing List

• 1/8” Ball Intender

• Ø1/8” Steel Ball

• Small Flat Anvil

• 1/4” Ball Intender

• Ø 1/4” Steel Ball

• Intender Protector

• 1/2” Ball Intender

• Ø 1/2” Steel Ball
