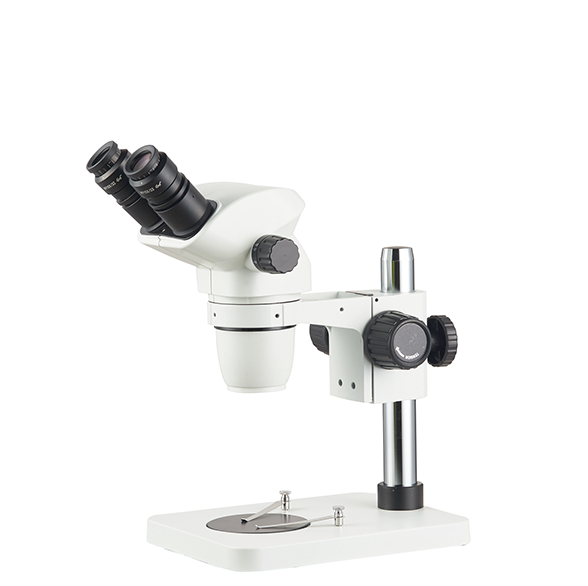

Observation Head: 45°decline, 360°rotate, Pupil distance 54---76mm Bilateral visual adjustment±5°
Eyepiece: Standard WF10X22 High angle wide angle eyepiece, provide convenience for observers who wearing glasses
Optional eyepiece: WF10X22，WF20X12mm
Magnification: Standard 6.5X---65X Optional and auxiliary objective can be extended to 2X---260X, continuous doubling
Objective: 0.65X---6.5X Zoom Range Objective magnification ratio 1：10, ensure image alignment
Auxiliary Objective: 0.3X，0.5X，0.75X，1X，1.5X，2X (Optional)
Working Distance: 110mm
Focusing Bracket: 76mm diameter, 32mm pole size
Stand: TO column type small flat base (Standard) Other base can be selected, see the base series for details
Illumination: Optional LED Illumination
Plate: Black/ White plate
Production Feature：
Unique optic design;
With long working distance and field of depth;
Horizontal zoom knob, easy operation;
Widely used for medical service, agriculture, geology, electronic precision mechanical industry and department.
