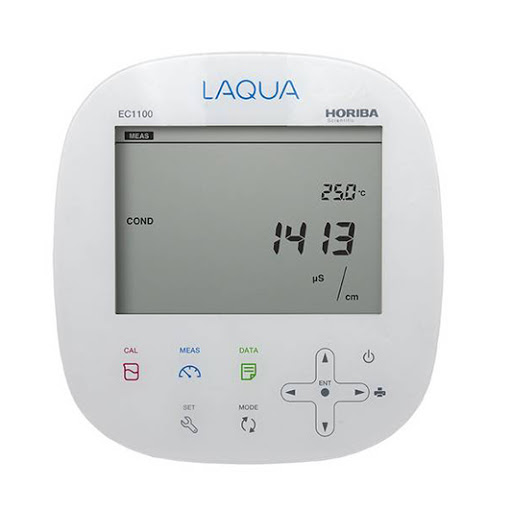

HORIBA EC1100 LAQUA EC/Res/TDS/Sal/Temp (°C) Meter

-Condutivity (EC) Range:

0.000 µS/cm to 20.00 mS/cm (k=0.1)

0.00 µS/cm to 200.0 mS/cm (k=1)

0.0 µS/cm to 2.000 S/cm (k=10)

Resolution: 0.05% of full scale

Accuracy: ± 0.6% of full scale; ± 1.5% of full scale > 18.0 mS/cm

Reference Temperature: 15 to 30 °C (Adjustable)

Temperature Coefficient: 0.00 to 10.00 % (Adjustable)

Cell Constant: 0.1 / 1.0 / 10.0 (Selectable)

Measurement Unit: μS/cm, mS/cm, S/m (Auto-ranging / Manual)

Calibration Points: Up to 4 (Auto / Manual)

-TDS Range: 0.00 mg/L to 100 g/L

Resolution: 0.01 mg/L

Accuracy: ± 0.1% of full scale

Calibration Curves: EN27888 / 442 / Linear (0.40 to 1.00) / NaCl

-Resistivity Range:

0.0 Ω•cm to 2.000 MΩ•cm (k=10)

0.000 kΩ•cm to 20.00 MΩ•cm (k=1)

0.00 kΩ•cm to 200.0 MΩ•cm (k=0.1)

Resolution: 0.05% of full scale

Accuracy: ± 0.6% of full scale; ± 1.5% of full scale > 1.80 MΩ•cm

-Salinity Range: 0.00 to 100.00 ppt / 0.000 to 10.000 %

Resolution: 0.01 ppt / 0.001 %

Accuracy: ± 0.2% of full scale

Calibration Curves: NaCl / Seawater

-Temperature Range: -30.0 to 130.0 °C

Resolution: 0.1 °C

Accuracy: ± 0.4 °C

Calibration Option: Yes

Memory Data: 500

Auto-Hold / Auto-Stable: Yes

Cell Constant Display: Yes

Electrode Status: On screen display

Diagnostic Messages: Yes

Display: Custom black and white static LCD

Inputs: BNC, phono, DC sockets

Output: RS232C, USB

Power Requirement: AC adaptor, 100-240V, 50/60Hz

Weight: 500g

Dimensions: 170(L) x 174(D) x 73(H) mm
