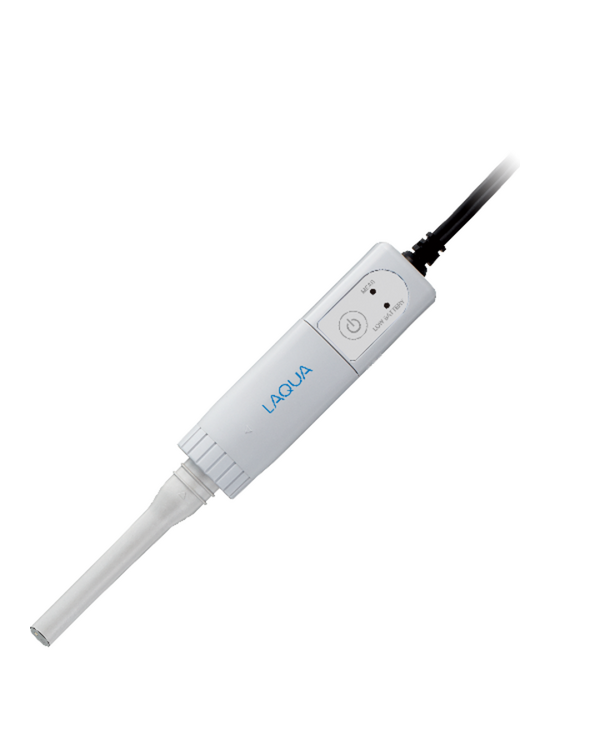

HORIBA 0040N-10D pH Electrode (0 ~ 14pH)

Sensing Device: Ion-sensitive field-effect transistor (ISFET)

Replacement Sensor : 0141N

pH Range: 0 to 14

Usable Temperature Range : Sensor: 0 to 60 °C, Converter: 0 to 40 °C

Storage Temperature Range: 0 to 40 °C

Internal Electrode: Ag/AgCl

Reference Electrode Internal Solution: Carboxymethyl cellulose (CMC), glycerin, saturated KCl

Liquid Junction Material: Porous sintered polyethylene

Sensor Material: Tantalum pentoxide, LCP, epoxy resin, polyethylene resin, gold, titanium

Height of Sensing Part: 1 mm (from the tip of the electrode)

Temperature sensor: Integrated

Power: 6V DC CR2032 x 2, Auto power off (1h)

LED Indicator: Meas LED (green blink while power on), Low batt LED (red blink when battery voltage is low)

Connectors: BNC, phono jack

Electrode Length: 190 mm (excluding cable)

Cable Length: 1 m
