-Display: 4.3 inch TFT LCD
-Test Parameters: VF/VR/IR/R/TC
-VF Test:
+Current Set:
.Range: 0~20 A
.Accuracy: 1%±2 counts
+Current Read-Back:
.Range: 0~20 A
.Accuracy: 0.1%±2 counts
+Voltage Test:
.Range: 0~20 V
.Accuracy: 0.1%±2 counts
-IR/VR Test:
+Current Set:
.Range: source is programmable within 0~100mA
.Accuracy: 0.50%
+Voltage Set:
.Range: source is programmable within 0~250 V
.Accuracy: 0.50%
+IR Accuracy: 0.1%±2 counts
+VR Accuracy: 0.1%±2 counts
- Low IR Test
+Range: 1μΩ~10Ω
+Accuracy: 0.1%±2 counts
- Temperature Test:
+Range: -10°C~200°C
+Accuracy: 0.1%±1°C
-Other Functions: VF-°C or VR-IR graphic scanning
-Binout Function: binout with light and voice prompt
-Complex Test: test steps can be programmed
-File Storage: U disk (Max 2G)
-Interface: RS232/Handler
-Power Supply
+Voltage:90V AC-250V AC
+Frequency:47Hz-400 Hz
-Power Maximum: 500VA
- Dimensions: 358mm×249mm×102mm（L*W*H）
-Weight: 3.5kg

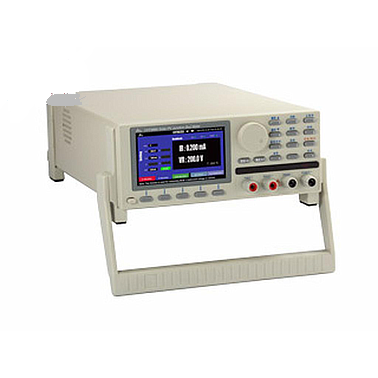

| CHT9960 photovoltaic junction box Meter is the special test equipment developed by the Company for PV junction box electrical characteristics testing requirements. Test inside the junction box diode forward voltage drop VF, the reverse leakage current IR reverse voltage VR conduction DC resistance R, and the temperature TC parameters. 10W ~ 400W junction box (2 to 8 diode) to meet testing requirements. Online test is widely used in the junction box manufacturers and component manufacturers to use the purchase acceptance. This instrument uses the latest switch programmable power technology, makes the instrument premise powerful and lightweight structure. 4.3-inch TFT color LCD display, support U disk to save data, standard RS232C and HANDLER interface, automated measurements. |
|
CHT9960 PV Industry Tester |
|||
|
Display |
4.3 inch TFT LCD |
||
|
Test Parameters |
VF/VR/IR/R/TC |
||
|
VF Test |
Current Set |
Range |
0~20 A |
|
Accuracy |
1%±2 counts |
||
|
Current Read-Back |
Range |
0~20 A |
|
|
Accuracy |
0.1%±2 counts |
||
|
Voltage Test |
Range |
0~20 V |
|
|
Accuracy |
0.1%±2 counts |
||
|
IR/VR Test |
Current Set |
Range |
source is programmable within 0~100mA |
|
Accuracy |
0.50% |
||
|
Voltage Set |
Range |
source is programmable within 0~250 V |
|
|
Accuracy |
0.50% |
||
|
IR |
Accuracy |
0.1%±2 counts |
|
|
VR |
Accuracy |
0.1%±2 counts |
|
|
Low IR Test |
Range |
1μΩ~10Ω |
|
|
Accuracy |
0.1%±2 counts |
||
|
Temperature Test |
Range |
-10°C~200°C |
|
|
Accuracy |
0.1%±1°C |
||
|
Other Functions |
VF-°C or VR-IR graphic scanning |
||
|
Binout Function |
binout with light and voice prompt |
||
|
Complex Test |
test steps can be programmed |
||
|
File Storage |
U disk (Max 2G) |
||
|
Interface |
RS232/Handler |
||
|
Power Supply |
Voltage:90V AC-250V AC Frequency:47Hz-400 Hz |
||
|
Power Maximum |
500VA |
||
|
Dimensions |
358mm×249mm×102mm（L*W*H） |
||
|
Weight |
3.5kg |
||
