-Display: 95mm*20mm monochrome LCD
-Test Parameters: leakage current/insulation IR
-Voltage Resolution: 1V
-Voltage Accuracy: 3%
-Frequency: 50Hz/60Hz
-Output AC: 0.5kV-6kV; 12mA
-Output DC: 0.5kV-6kV; 6mA
-Current Resolution: 1uA
-Current Accuracy: 3%+2 counts
-Voltage Ramp Up Time: 0.1s-999.9s
-Test Time: 0.1s-999.9s
-Arc Test Function: 1~9 level
-Insulation IR Range: 100kΩ~100GΩ
-Voltage Output: 0.5kV~1.0kV
-Memory Group: 3 groups
-Interface: PLC interface(Optional), RS232C (Optional)
-Power Supply:
+Voltage:198V-240V AC
+Frequency:47Hz-63Hz
-Pmax: 100VA
-Dimensions: 374mm*280mm*99mm（L*W*H）
-Weight: 7.5kg

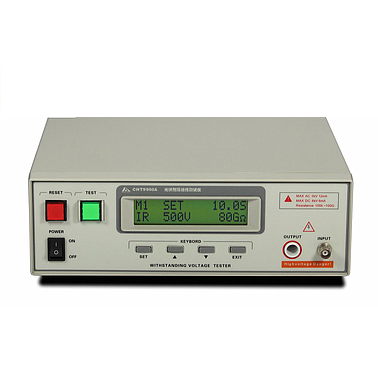

| CHT99XX Series combines AC voltage withstand, DC voltage withstand and insulation resistance (IR) function tests. It has 10V~6kV AC/DC voltage output and 100k~100GΩ insulation resistance. CHT99XX also combines both Arc detection and power detection functions. All 3 test modes are programmable and each mode can be combined to compare. With the optional RS485 interface, CHT99XX can be easily implemented instrument network through MODBUS protocol. FEATURE: Voltage rise-time is less than 0.2s Insulation resistance test-range is 100KΩ ~ 100GΩ Measuring end test has grounding mode and floating mode Built-in 3 group test modes, each mode can be combined to compare Various interface configuration suitable for automated test system |
|
Model |
CHT9910 |
CHT9912 |
CHT9922 |
CHT9950A |
|
|
Display |
95mm*20mm monochrome LCD |
||||
|
Test Parameters |
leakage current/insulation IR |
||||
|
Voltage Resolution |
1V |
||||
|
Voltage Accuracy |
3% |
||||
|
Frequency |
50Hz/60Hz |
||||
|
Output |
AC |
0.5kV-5kV |
0.5kV-5kV |
0.5kV-5kV |
0.5kV-6kV |
|
12mA |
|||||
|
DC |
—— |
0.5kV-6kV |
|||
|
—— |
6mA |
||||
|
Current Resolution |
1uA |
||||
|
Current Accuracy |
3%+2 counts |
||||
|
Voltage Ramp Up Time |
0.1s-999.9s |
||||
|
Test Time |
0.1s-999.9s |
||||
|
Arc Test Function |
1~9 level |
||||
|
Insulation IR Range |
—— |
—— |
100kΩ~100GΩ |
100kΩ~100GΩ |
|
|
Voltage Output |
—— |
—— |
0.5kV~1.0kV |
0.5kV~1.0kV |
|
|
Memory Group |
3 groups |
||||
|
Interface |
PLC interface(Optional), RS232C (Optional) |
||||
|
Power Supply |
Voltage:198V-240V AC Frequency:47Hz-63Hz |
||||
|
Pmax |
100VA |
||||
|
Dimensions |
374mm*280mm*99mm（L*W*H） |
||||
|
Weight |
7.5kg |
||||
