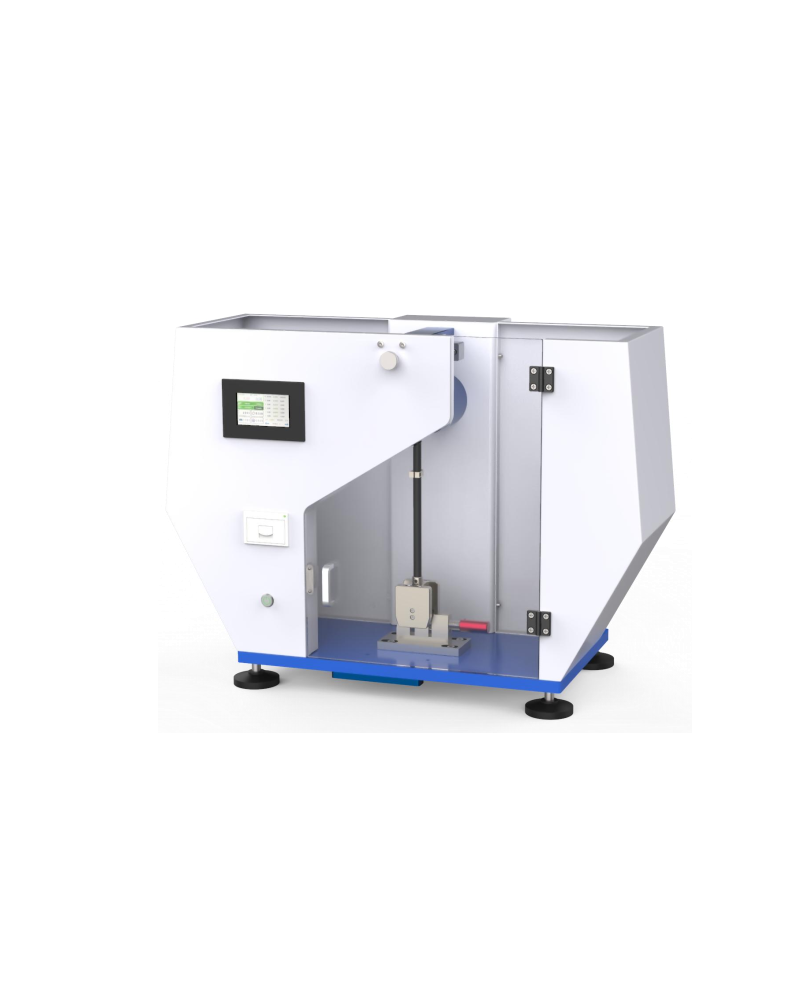

HONTOTEST HT-1843-5.5D Izod Impact Tester (3.5 m/s)

Name: HONTOTEST HT-1843-5.5D Izod Impact Tester (3.5 m/s)
Brand: HONTOTEST

ModelHT-1843-5.5D

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Impact speed: 3.5m/s

Pendulum energy: 1J、 2.75J、 5.5J

Pendulum torque:

1J MN =0.5358N.m

2.75J MN =1.4737N.m

5.5J MN =2.9474N.m

Pendulum lift angle: 150°

Distance from the center of pendulum to striking edge: 335mm

Energy display accuracy: 0.001J

Angle resolution: 0.04°

Distance from the impact blade to the upper plane of the jaw: 22mm±0.2mm

Edge fillet radius: R=0.8mm

output method: Printout or U disk output

Power voltage: 110～240V 50/60Hz

Dimension(length*width*height): 84cm*37cm*65cm
