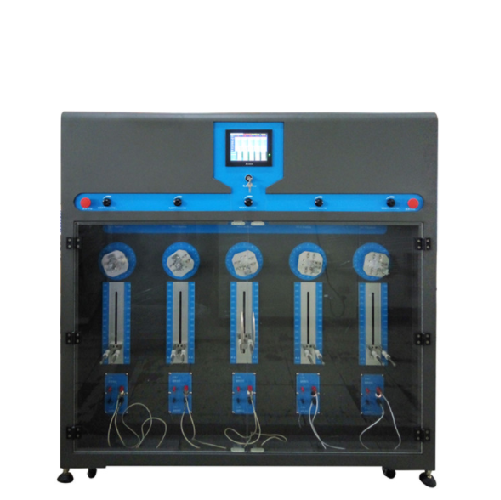

Hongdu HD-8869D Load Bending Tester (1500W, 5-60 times/min)

Input power: 220VAC±10%, 50/60Hz

Fuse: 10A/250VAC

Power: 1500W

Bending angle: 10°~180°

Bending speed: 5 to 60 times/min

Return time: 0~99.9

Load current: 0.1-1.5A depends on the power of the power supply board

Load input voltage: 5V

Number of bending: 0~999999Settings

Farmar: 50g, 100g, 200g, 300g, 453g,114g ,225 g

Overall dimensions: 1450*640*1500(mm)

Test mode: Mechanical test/on-off test/apple test

Stop mode: Bad downtime

Count way: Unidirectional/bidirectional (when counting bidirectional, only continuous operation is effective)

Rotation mode: Forward/reverse/continuous
