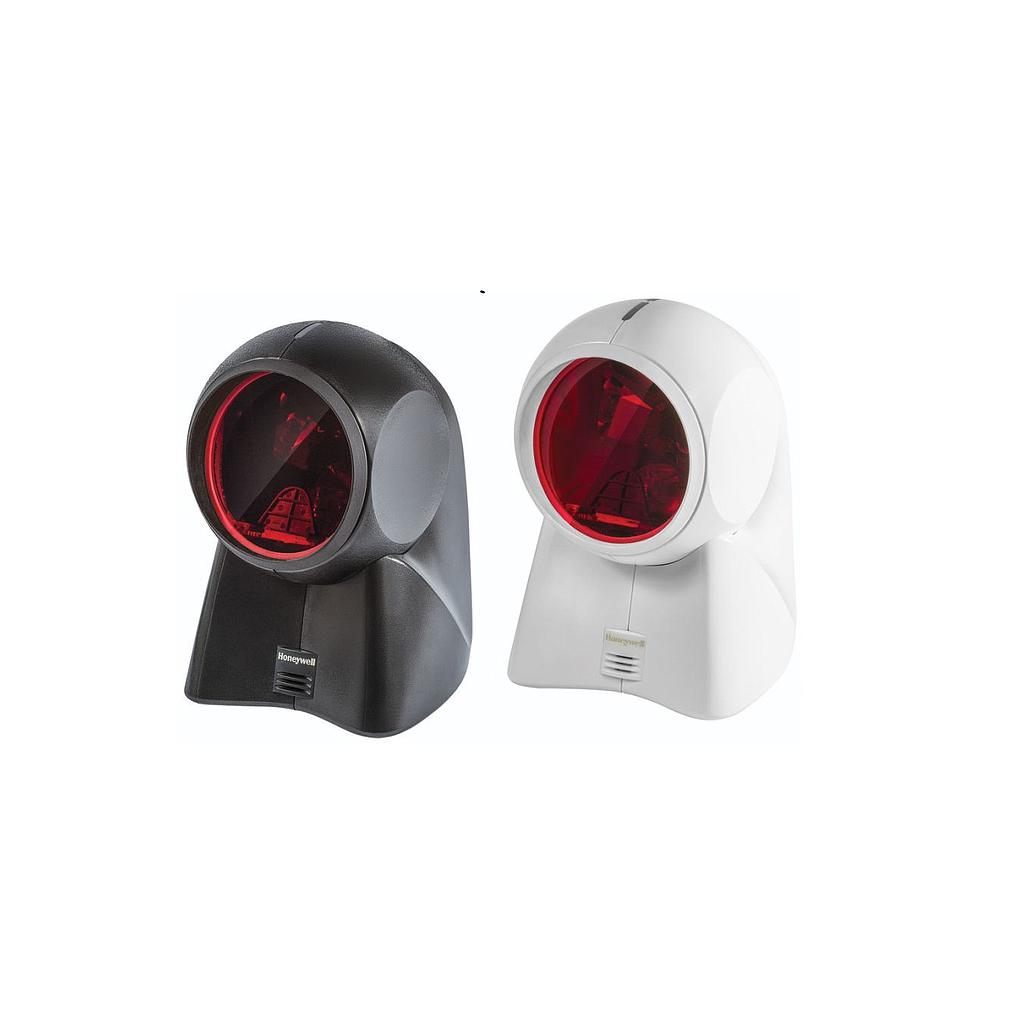

Honeywell Orbit 7190g Hybrid Presentation Scanner (1D/2D, SR)

Dimensions (L x W x H): 108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)

Input Voltage: 5 VDC ±0.25 V

Operating Power: 472 mA @ 5 V

Host System Interfaces: USB, RS-232, Keyboard Wedge, IBM468xx (RS485)

Scan performance:

Scan Pattern: Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480 pixel array)

Scan Angle: Horizontal: 40°;

Vertical: 30.5°

Print Contrast: 35% minimum reflectance difference

Pitch, Skew: Laser: 60°, 60°

Imager: 60°, 70°

Decode Capability:

Laser: Reads standard 1D, GS1 DataBar symbologies

Imager:Reads standard 1D, PDF and 2D symbologies

Datasheet
