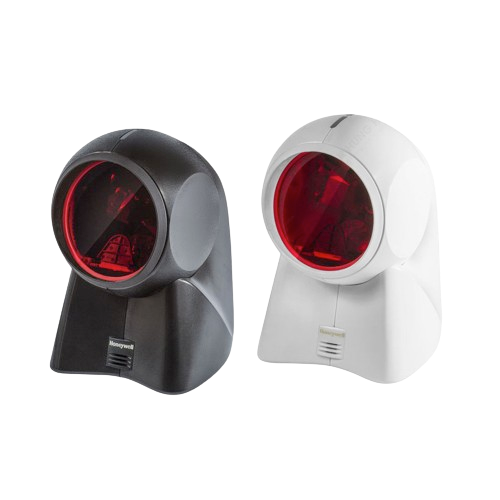

Honeywell Orbit 7120 Omnidirectional Laser Scanner

MECHANICAL

Dimensions (L x W x H):105 mm x 102 mm x 150 mm (4.1 in x 4.0 in x 5.9 in)

Weight: 400 g (14.1 oz)

ELECTRICAL

Input Voltage: 5 VDC ±0.25 V

Operating Power: 900 mW (180 mA @ 5 V)

Standby Power: 850 mW (170 mA @ 5 V)

Host System Interfaces: USB, RS-232, Keyboard Wedge, IBM 468xx (RS485)

ENVIRONMENTAL

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: -40°C to 60°C (-40°F to 140°F)

Humidity: 5% to 95% relative humidity, non-condensing

Drop: Designed to withstand 1.2 m (4 ft) drops

Environmental Sealing: Sealed to resist airborne particulate contaminants

Light Levels: 4842 Lux

SCAN PERFORMANCE

Print Contrast: 35% minimum reflectance difference

Pitch, Skew: 60°, 60°

Decode Capability: Reads standard 1D and GS1 DataBar symbologies
