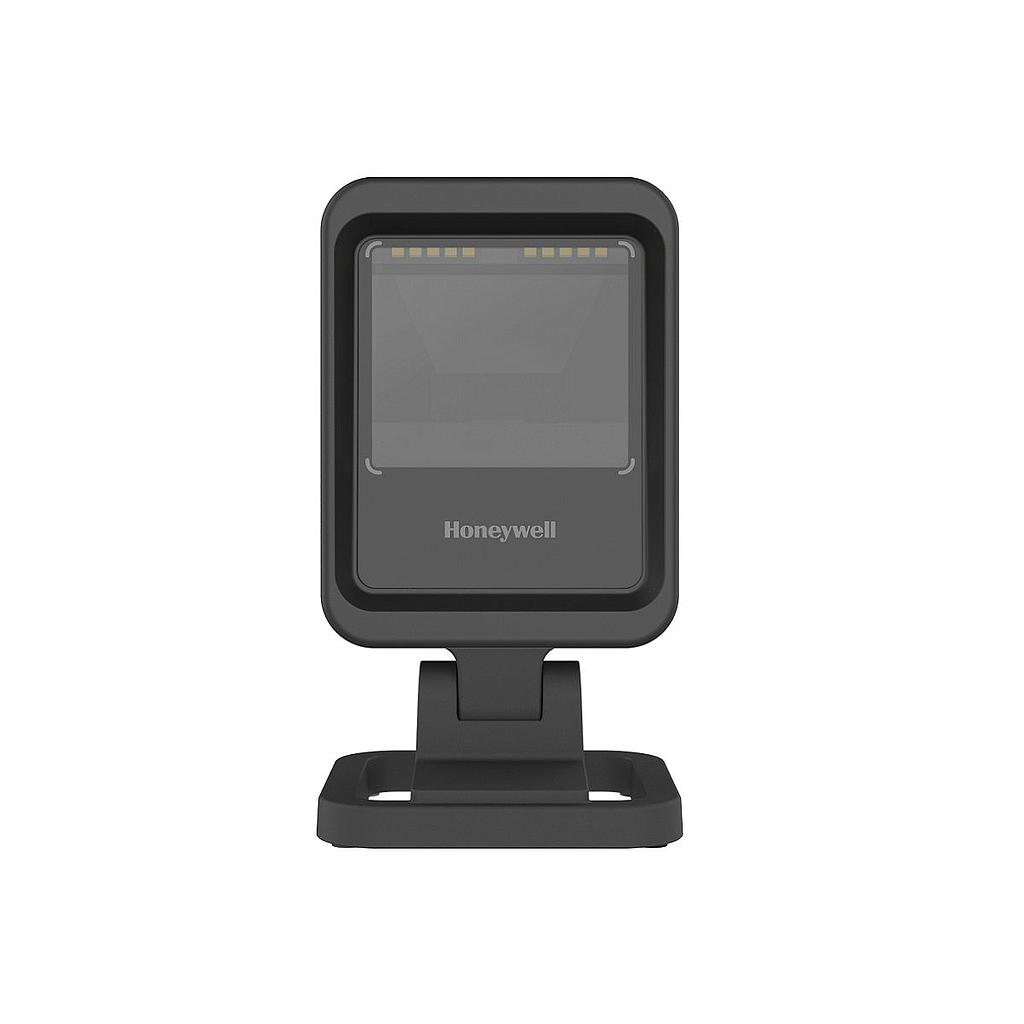

Honeywell Genesis XP 7680g Flexible Presentation Scanner (1D/2D, SR, Area Image)

Dimensions (L x W x H):

3.2" x 1.6" x 4.1" (no stand); 3.2" x 1.6" x 5.7" (with stand)

80 mm x 40 mm x 105 mm (no stand); 80 mm x 40 mm x 145 mm (with stand)

Input Voltage: 5.0V DC Typical

Operating Power: 2.5 W (500mA @ 5V)

Host System Interfaces: USB, RS-232, Keyboard Wedge, IBM 46xx (RS-485)

Scan performance:

Scan Pattern: Area Image 1,280 x 800 pixel array, 1Mp

Motion Tolerance: 400 cm/s (158 in/s) for 13 mil UPC at optimal focus

Scan Angle: Horizontal: 48°;

Vertical: 30°

Print Contrast: 20% minimum reflectance difference

Pitch, Skew: 65°, 65°

Decode Capability: Reads standard 1D, 2D, PDF, 2D, Dotcode symbologies, Digimarc supported
