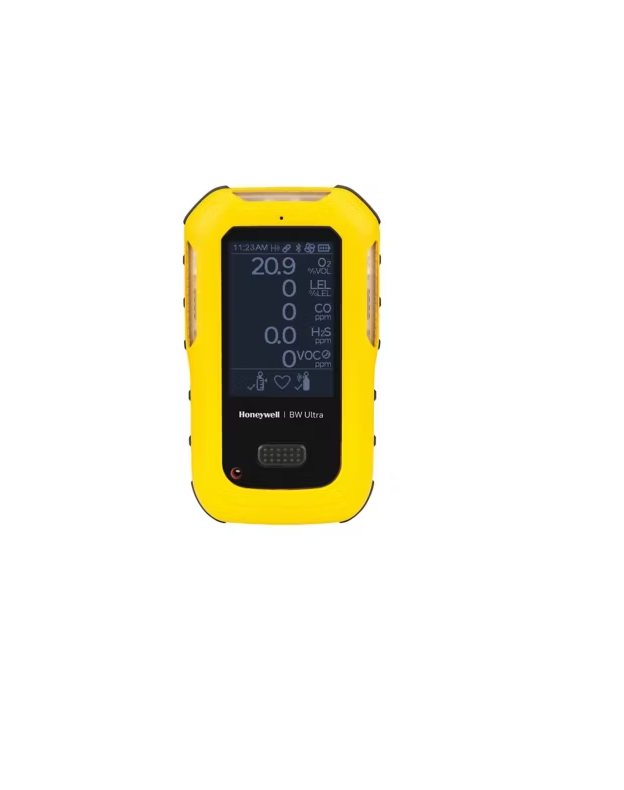

Honeywell BW Ultra Multi-Gas Detector

SENSOR SPECIFICATIONS

GASES: STANDARD MEASURING RANGE/ RESOLUTION

OXYGEN (O2): 0-25% vol. /0.1% vol.

COMBUSTIBLE GASES (LEL): 0-100% LEL /1% LEL

COMBUSTIBLE GASES (IR)*: 0-5.00% vol./ 0.01% vol.

HYDROGEN SULFIDE (H2S): 0-100 ppm /1 ppm / 0.1 ppm

CARBON MONOXIDE (CO): 0-2,000 ppm/ 1 ppm

CARBON MONOXIDE (LOW H2) (CO-H): 0-1,000 ppm/ 1 ppm

SULFUR DIOXIDE (SO2): 0-100 ppm/ 0.1 ppm

HYDROGEN (H2): 0-2,000 ppm/ 5 ppm

CARBON DIOXIDE (CO2): 0-50,000 ppm/ 10 ppm

AMMONIA (NH3): 0-100 ppm/ 1 ppm

VOLATILE ORGANIC COMPOUNDS (VOC) **: 0-1,000 ppm/ 1 ppm

CHLORINE (CL2): 0-20 ppm/ 0.1 ppm

NITROGEN DIOXIDE (NO2): 0-50 ppm/ 0.1 ppm

HYDROGEN CYANIDE (HCN): 0-100 ppm/ 0.1 ppm

NITROGEN MONOXIDE (NO): 0-200 ppm/ 1 ppm

TECHNICAL SPECIFICATIONS

SIZE: 5.8 x 3.3 x 1.6 in. / 14.8 x 8.5 x 4.0 cm

WEIGHT: 14.5 oz. / 411 g (with clip)

OPERATING TEMPERATURE: -4 to +131° F / -20 to +50° C

HUMIDITY: 5 - 95% RH (non‑condensing) continuous

INGRESS PROTECTION: IP66/68

ALARMS AND TYPE: Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, OL (over limit)

SELF-TEST: Activated detectors automatically perform one internal diagnostic test every 24 hours (sensors, battery, and circuitry).

TYPICAL BATTERY LIFE: 18 hours (14 hours with PID or IR sensor) @ -4° F / -20° C

PUMP DRAW: Sample from up to 75 ft. / 22.9 m

CONNECTED WORKER

• Bluetooth™ Low Energy (BLE) – Ability to connect to Honeywell’s Safety Communicator App

• Honeywell TouchConnect™ – Easy ability to enter Bump or Calibration mode or change Set-Points

EVENT LOGGING: Up to 16 hours at 15-second intervals

Includes:

Honeywell BW™ Ultra gas detector

Quick Reference Guide

Battery (factory-installed)

Screwdriver telescope with double end

Charging adapter

3m PVC tube

1 Dust porous filter 7/16"

2 Fitting mini quick connector to 1/8"

5 Pump filters

2 Fitting male Luer-Lock to 1/8"

USB memory stick containing user manuals

1 screen protector (factory-installed)

Datasheet
