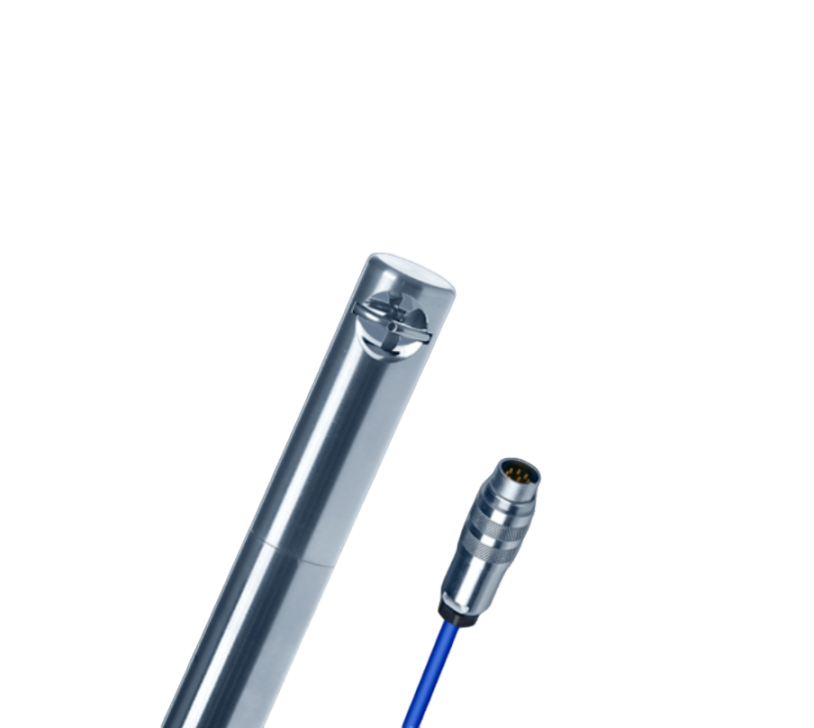

Hoentzsch ZSR25 Vane Wheel Flow Sensors (Order code: ZSR25GFE-mn20/240-2/p6, 0.4...20 m/s, -40 ... +240 °C)

Sensor type: cyclindrical probe with ± directional sensing

Sensor diameter: head diameter 25 mm

Shaft diameter: -

Medium: air/gases and water/ liquids

Material in contact with the medium: stainless steel

Material sensor: stainless steel 1.4404/AISI 316L, 1.4305, 1.4571

Material sealing: FKM, PTFE, graphite

Others: PVDF, vespel, ceramics Al2O3

Vane wheel type: mn20

Measuring range air/gases: 0.4 ...20 m/s

Temperature of the medium: -40 ... +240 °C

2 m fixed high temperature cable in front of cable amplifier + 1.5 m low temperature cable (max. +105 °C) behind cable amplifier

Max. working pressure: up to 6 bar / 0.6 MPa overpressure

For more details, see datasheet.
