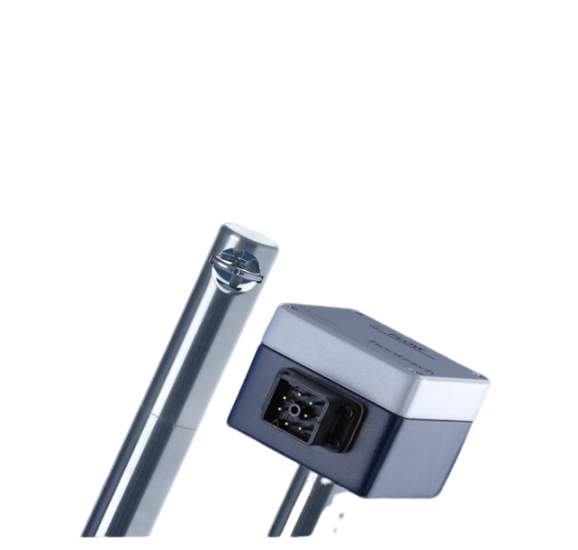

Hoentzsch ZS30 Vane Wheel Flow Sensor (Order code: ZS30/30-350GE-md3T/100/p6/ZG4, 0.3~3.0 m/s, 100 °C, 350mm)

Sensor type / Sensor diameter: Vane wheel flow sensor ZS30 with sensor Ø 30 mm and shaft Ø 30 mm

Sensor length measurement: 350mm

Medium: air/ gases

Material in contact with the medium: stainless steel 1.4404 / AISI 316L, titanium, ceramics Al2O3 99.9 %, pure graphite

Measuring range: 0.3 ... 3.0 m/s (with a gas density of approx. 1.2 kg/m³)

Measuring uncertainty: < 1.5 % of reading + 0.03 m/s

Consistency: ± 0.02 m/s

Permissible temperature of the medium: -20 ... +100 °C (continuous)

Max. working pressure / Type of protection for sensor: 6 bar / 600 kPa above atmospheric

Option 'Ex': see datasheet

Design: see datasheet

For more details, see datasheet.
