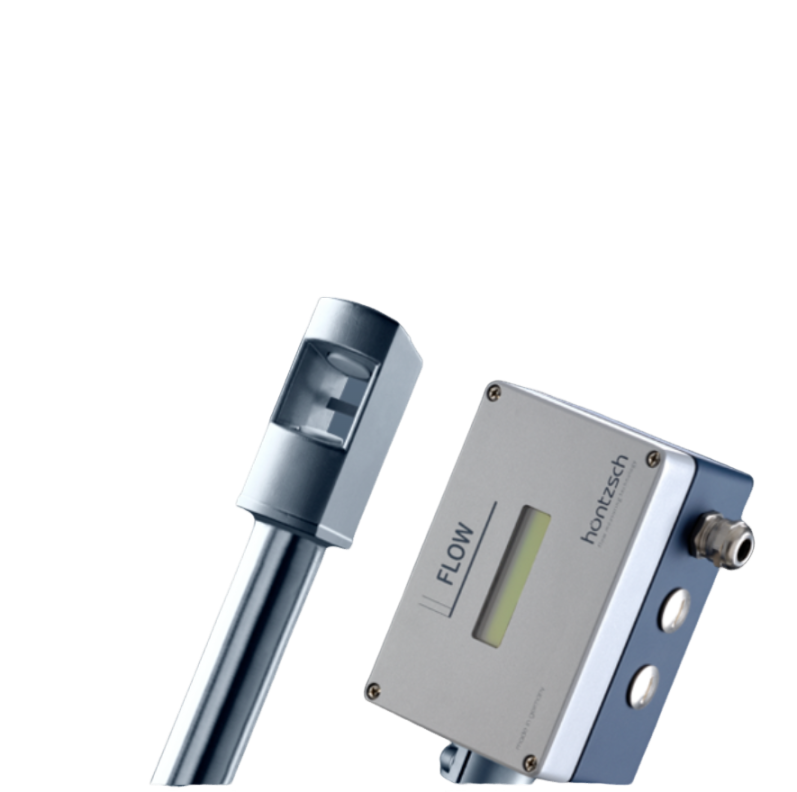

Hoentzsch VAT40 Vortex Flow Sensor (Order code: VAT40/21,3GH40m/sp3ZG4, 0.5 ~ 40 m/s, Pt100)

Sensor type/ sensor diameter: Vortex flow sensor VA40 with sensor head width across corners 40 mm and shaft Ø 21.3 mm for insertion in openings with a diameter greater than 40 mm with additional integrated PT100 temperature sensor

Medium: air / gases

Material in contact with the medium: Hastelloy 2.4610 / HC4, ceramics, silicone-free sensor

Measuring range: 0.5 ... 40 m/s

Maximum working pressure: up to 3 bar / 300 kPa overpressure

For more details, see datasheet.

Datasheet
