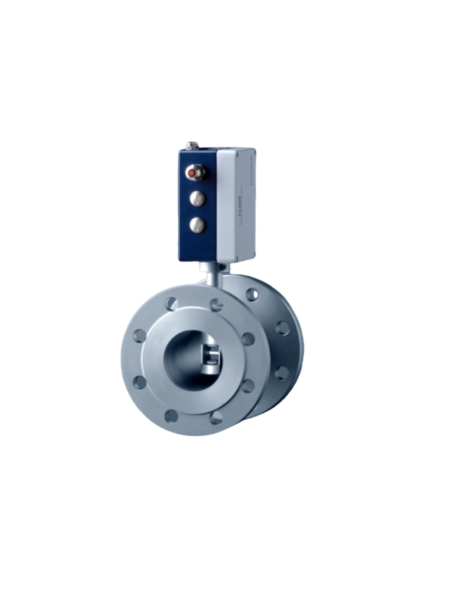

Hoentzsch VA Di 40 Vortex Flow Sensors (Order code: VA Di 40GE30m/s/p10ZG1, 135 m3/h, stainless steel)

With integrated transducer UVA (output 4-20 mA or 0-10 V)

Dimension:

tube inside Ø Di [mm]: 40

flange outside Ø D [mm]: 150

flange thickness b [mm]: 16

hole circle Ø k [mm]: 110

hole Ø d [mm]: 18

no. of holes: 4

sensor length [mm]: 200

sensor height H [mm]: 250

sensor weight [kg]: 10

Medium: gases

Materials in contact with the medium: stainless steel 1.4404, 1.4571, 1.4581, ceramic

Measuring range:

flow rate [m³/h]: 1.8 ~ 135

average flow velocity [m/s]: 0.4 ... 30

Max. working pressure: up to 10 bar / 1 MPa overpressure

For more details, see datasheet.

Datasheet

Drawing
