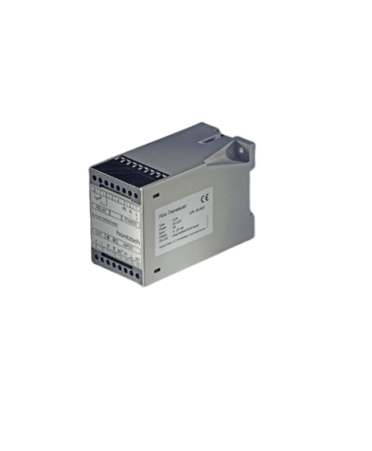

Hoentzsch UVA Parameterizable Transducer (Order code: UVA/0-10V/12VDC/LDG16, 0-10V, 12VDC)

For use with vortex flow sensors VA40 and VA Di for measuring flow rate and flow velocity

Transducer type: UVA

Outputs: 0~10V

Power supply: 12 V DC (10 ... 17 V DC), output < 5W

Housing

Macrolon mounting rail housing LDG16: dimensions B/H/D = 55/75/110 mm, for 35 mm rail (DIN EN 60715 and SN EN 50022) or screwed connection

Connection: protected terminal screws according to DIN VDE 0100 and VGB4, for conductors with cross sections from 0.14 ... 4 mm²

Protection: IP20, IEC 529 and EN 60 529

EMC: EN 61 000-6-2 / IEC77

Working temperature range: 0 ... +50 °C

For more details, see datasheet.
