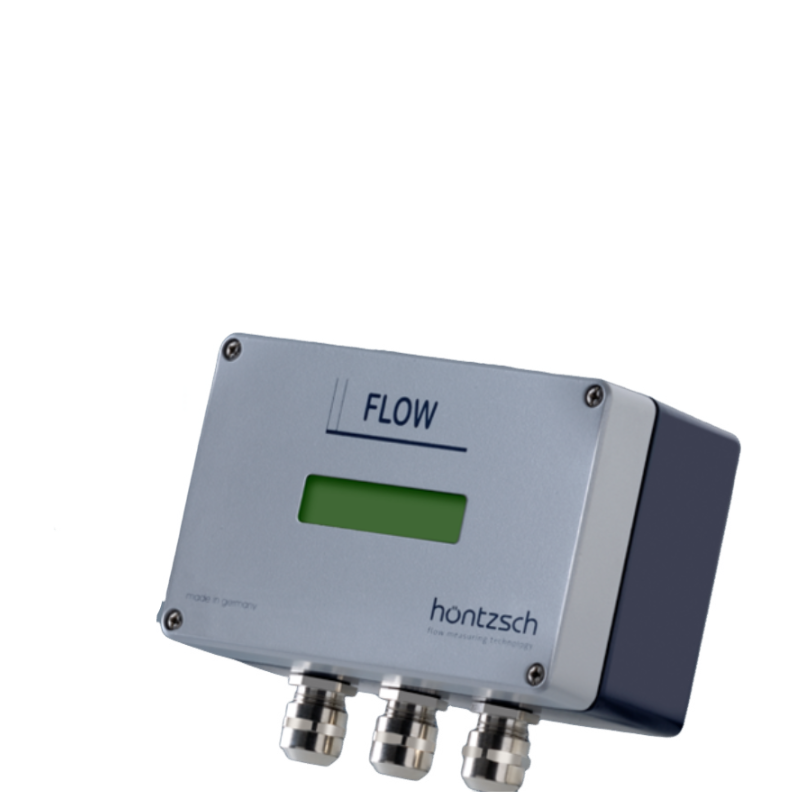

Hoentzsch UFA Parameterizable Transducer (Order code: UFA/4-20 mA/24VDC/AS102, 4-20 mA, 24VDC)

Transducer type: input flow v/FA or v/FAR

Outputs: analog output v, flow velocity/flow rate: 4 ... 20 mA = 0 ... x m/s (or m³/h),

Power supply: 24 V DC (20 ... 27 V DC), output < 5 W

Housing: aluminium housing AS102

Dimensions L/B/H: 150/100/80 mm bush for shielded cables with outside diameter 5 ... 10 mm, contacting of Cu overall shielding by the metallic screwed cable glands

Working temperature range

without display : -25 ... +60 °C

with display : -25 ... +60 °C

For more details, see datasheet.
