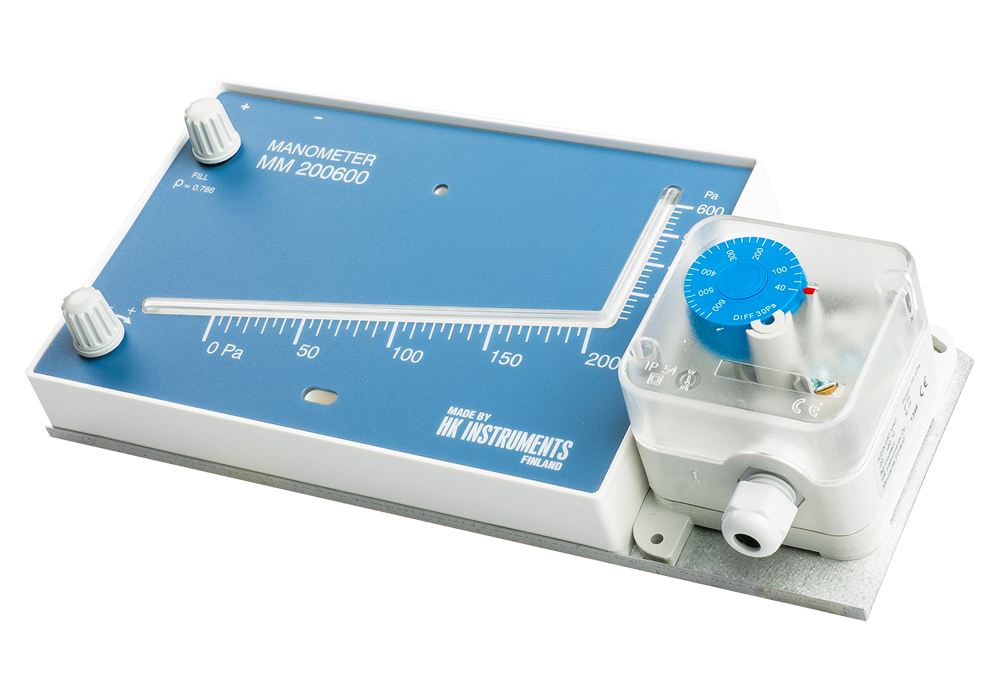

HK Instruments MM200600/PS600 Combination of liquid column manometer and pressure switch (MM: 0–600 Pa; PS: 40–600 Pa)

Measurement range MM (Pa): 0–600 Pa

Measurement range PS (Pa): 40–600 Pa

Switching difference: 30 Pa

Accuracy of switching point (low limit typ.): 40 Pa ±5 Pa

Accuracy of switching point (high limit typ.): 600 Pa ±30 Pa

Electrical rating, resistive load: 3 A / 250 VAC

Electrical rating, inductive load: 2 A / 250 VAC

Maximum pressure: 50 kPa

Service life: > 1 000 000 switching operations

Measuring units: Pa

Environment: Operating temperature: -20...+60 °C; Storage temperature: -40...+85 °C

Protection standard: IP54
