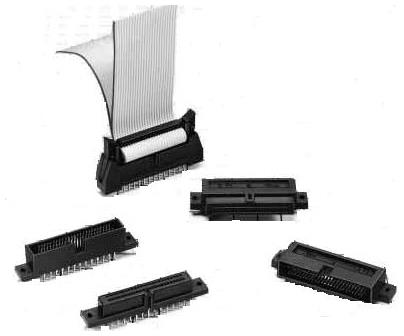

Hirose Electric HIF6H-100PA-1.27DS(71) Shrouded 100P R/A PIN HEADER T/H BRD MNT GOLD PLT

Pitch: 1.27 mm (0.05 in)

Application: Wire-to-Board

Row Spacing: 2.54 mm (0.1 in)

Housing Color: Black

Latching Type: Eject Latch

Contact Gender: Pin (Male)

Current Rating: 500 mA

Mounting Angle: Right Angle

Mounting Style: Mounting Flange

Number of Rows: 2 Row

Voltage Rating: 125 V

Contact Plating: Gold

Contact Material: Brass

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Solder Pin

Mating Post Length: 5.2 mm (0.205 in)

Flammability Rating: UL 94 V-0

Number of Positions: 100 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
