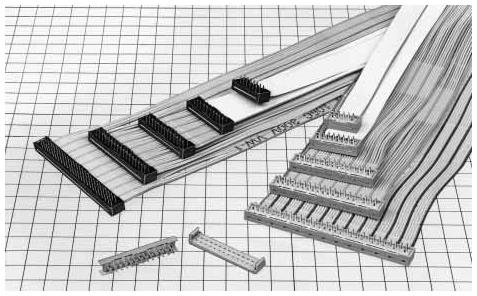

Hirose Electric HIF2E-14D-2.54RB(20) Ribbon Cable 14P IDC DIR PCB MNT UNIV TYPE CIR PLT

Pitch: 2.54 mm (0.1 in)

Application: Wire-to-Board

Row Spacing: 2.54 mm (0.1 in)

Unit Weight: 1.410 g

Housing Color: Black

Contact Gender: Pin (Male)

Current Rating: 1 A

Mounting Angle: Right Angle

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 200 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: IDC

Flammability Rating: UL 94 V-0

Number of Positions: 14 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
