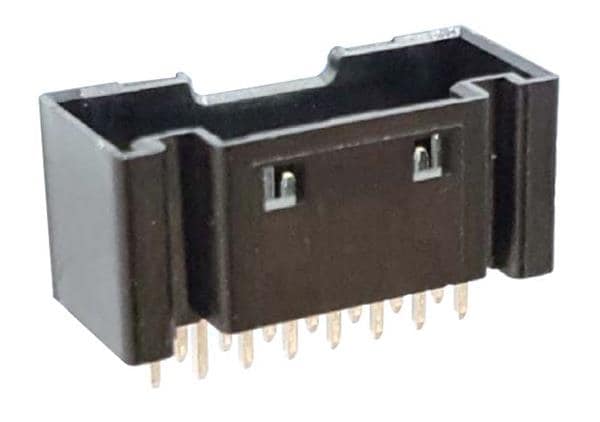

Hirose Electric DF51K-14DP-2DSA(805) Shrouded 2mm Pitch, Positive lock, Wire-to-Board Connector (UL, C-UL Listed) Straight Header double row 14 pos gold plated

Pitch: 2 mm (0.079 in)

Application: Wire-to-Board

Row Spacing: 2 mm (0.079 in)

Unit Weight: 840 mg

Housing Color: Black

Latching Type: No Latching

Contact Gender: Pin (Male)

Current Rating: 2 A

Mounting Angle: Straight

Mounting Style: Through Hole

Number of Rows: 2 Row

Voltage Rating: 250 VAC/VDC

Contact Plating: Gold

Contact Material: Brass

Housing Material: Polybutylene Terephthalate (PBT)

Termination Style: Solder Pin

Flammability Rating: UL 94 V-0

Number of Positions: 14 Position

Termination Post Length: 3 mm (0.118 in)

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 55 C
